SZK-C-0M04

Antennas RF Overview

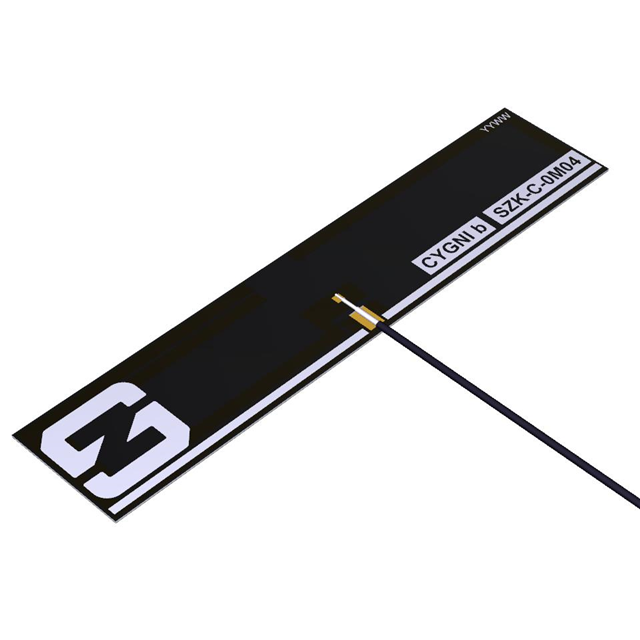

The Synzen SZK-C-0M04 is an RF antenna designed for ISM band applications, specifically operating at 868MHz. It utilizes a Flexible Printed Circuit (FPC) construction with an integrated cable and features an IPEX connector interface. The component is classified as a flat patch antenna suitable for internal device placement within compact electronic assemblies.

Antennas RF Feature Summary

• Compact FPC design optimized for internal device placement
• Integrated cable configuration for flexible routing
• IPEX connector interface for standard integration

Antennas RF Applications

• ISM band communication modules
• LoRa wireless devices
• Internal IoT sensor nodes

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm exact electrical parameters and mechanical dimensions prior to procurement. Ensure compatibility with the target IPEX connector type and check RoHS3 compliance status against current regulatory requirements for the intended market.

Antennas RF Selection Notes

Select this component for applications requiring an 868MHz solution in space-constrained environments. The FPC form factor allows for versatile mounting orientations. Confirm that the cable length and connector polarity meet the system layout requirements before finalizing the design.

Antennas RF Part Context

This part belongs to the Synzen CYGNI b series of antennas. The series focuses on robust small-area solutions for internal device placement. The SZK-C-0M04 represents a specialized variant within this family tailored for specific ISM frequency operations using FPC technology.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with other Synzen ISM band FPC antennas if cross-referencing is required.
