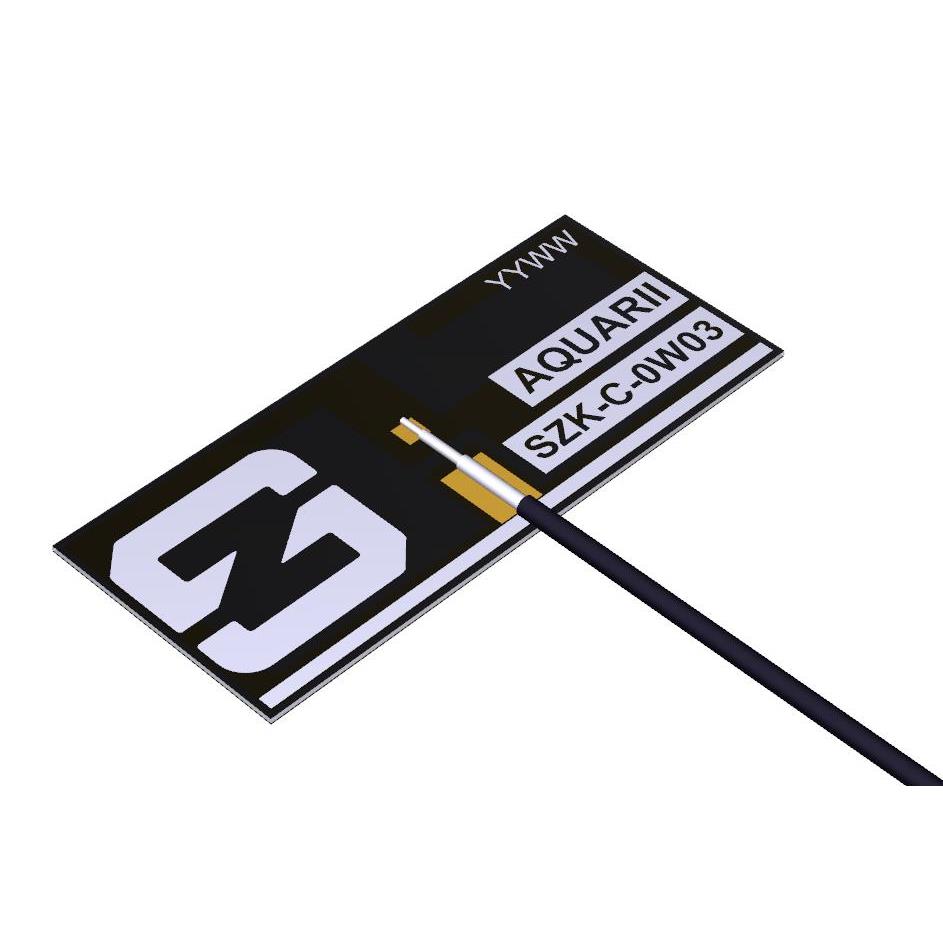

SZK-C-0W03-100-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is WI-FI ANT 2.4-5GHZ FLAT PATCH IP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZK-C-0W03-100-01
- Description：WI-FI ANT 2.4-5GHZ FLAT PATCH IP
- Series：AQUARII
- Mfr：Synzen
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 5.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
- Antenna Type：Flat Patch
- Number of Bands：2
- VSWR：1.85, 1.9
- Return Loss：-10dB, -10dB
- Gain：1.85dBi, 5.5dBi
- Features：Cable - 100mm
- Termination：IPEX MHF1, U.FL (UMCC)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
- Power - Max：3 W
Antennas RF datasheet and documents for SZK-C-0W03-100-01
Antennas RF Overview
The SZK-C-0W03-100-01 is a compact RF antenna designed for multi-standard wireless communication. It supports IEEE 802.11ax, 802.15.4, Bluetooth, Wi-Fi, and Wi-Fi 6E protocols. The device operates across 2.4 GHz and 5.4 GHz frequency bands. It features a flat connector interface suitable for space-constrained applications. The component complies with RoHS standards and has an MSL rating of 1.
Antennas RF Feature Summary
- Supports multiple wireless standards including 802.11ax, Bluetooth, and Wi-Fi 6E
- Operates on dual frequency bands for versatile connectivity
- Utilizes a flat connector interface for integrated circuit design
Antennas RF Applications
- IoT devices requiring multi-protocol wireless support
- Wi-Fi 6E enabled consumer electronics
- Bluetooth low energy peripheral modules
- Compact wireless gateways and routers
Antennas RF Procurement Notes
Verify the specific datasheet version before procurement to ensure compatibility with current design requirements. Confirm that the flat connector interface matches the PCB layout specifications. Check RoHS compliance documentation for regulatory adherence in target markets. Ensure the operating frequency range aligns with local radio regulations. Validate the MSL level handling procedures during assembly.
Antennas RF Selection Notes
Select this antenna when a single component must handle diverse wireless protocols such as Wi-Fi 6E and Bluetooth. Consider its physical dimensions for tight enclosure constraints. Evaluate the need for dual-band operation at 2.4 GHz and 5.4 GHz. Assess the suitability of the flat connector for automated assembly processes. Compare performance metrics against other antennas if high-gain is required.
Antennas RF Part Context
This part belongs to Synzen's RF antenna portfolio, focusing on integrated solutions for modern wireless standards. It addresses the trend toward multi-protocol connectivity in compact electronic devices. The model number indicates specific frequency and interface characteristics within the product line.
