SZK-C-0W03

Antennas RF Overview

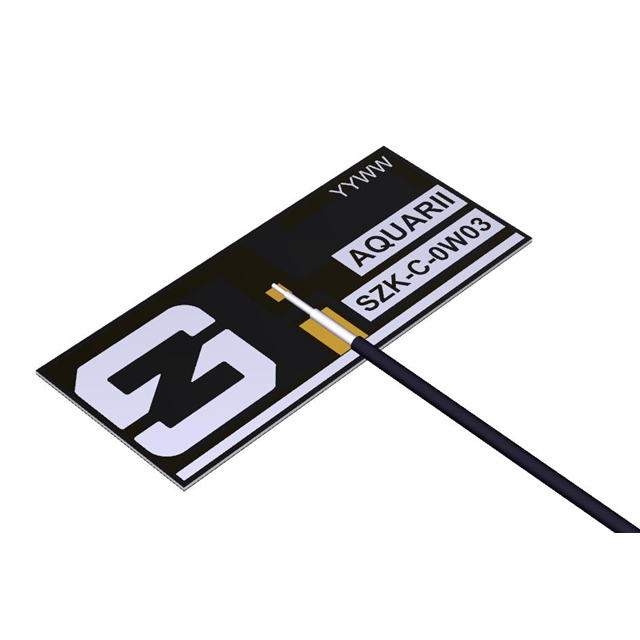

The Synzen SZK-C-0W03 is a dual-band WLAN flat patch antenna designed for compact integration. It supports IEEE 802.11a/b/g/n/ac standards across the 2.4–2.5 GHz and 4.9–6.0 GHz frequency ranges. The component features a U.FL (UMCC) connector compatible with I-PEX MHF1 interfaces, utilizing adhesive mounting for secure attachment. This configuration enables efficient signal transmission for wireless applications requiring small form factors.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4 GHz and 5 GHz WLAN frequencies
• Compact flat patch design suitable for space-constrained devices
• Adhesive mounting method for direct surface integration

Antennas RF Applications

• Wi-Fi routers and access points
• Bluetooth-enabled IoT modules
• ISM band wireless communication devices

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against your device's interface specifications before ordering. Confirm that the adhesive backing is compatible with your target substrate material to ensure reliable mechanical attachment during operation.

Antennas RF Selection Notes

Select this model when dual-band WLAN performance is required in a low-profile format. Ensure the host circuitry supports the 2.4 GHz and 5.4 GHz bands. Consider the U.FL connector mating cycle limits and verify clearance for the flat patch geometry within the final enclosure design.

Antennas RF Part Context

This part belongs to the AQUARII series of high-performance antennas from Synzen Precision Technology Ltd. The series emphasizes simple integration into modern electronic devices while maintaining robust RF characteristics for standard wireless protocols.

Antennas RF Replacement Considerations

The SZK-C-0W03-150-01 is an alternate variant offering different cable lengths. Verify connector compatibility and frequency coverage when substituting.
