SZK-C-0W07

Antennas RF Overview

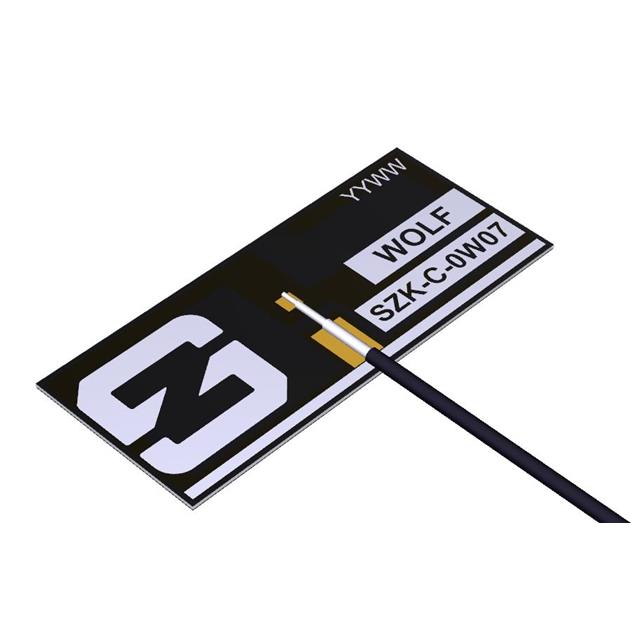

The Synzen SZK-C-0W07 is a flexible printed circuit (FPC) antenna designed for integrated wireless applications. It supports Wi-Fi standards including 802.11a/b/g/n/ac/ax, Bluetooth, and WLAN protocols. The component features an I-PEX MHF1 connector interface and utilizes adhesive mounting. Key electrical specifications include peak gains of 1.85 dBi, 3.4 dBi, and 5.5 dBi across operating bands centered at 2.45 GHz and 6.525 GHz, with a standing wave ratio of 2.6.

Antennas RF Feature Summary

• Flexible FPC construction suitable for internal device integration
• Supports multiple wireless protocols including Wi-Fi 6 and Bluetooth
• Adhesive mounting method for secure PCB attachment

Antennas RF Applications

• Wi-Fi 6E WLAN devices in the 6 GHz band
• Internal antennas for compact wireless modules
• Bluetooth-enabled IoT hardware

Antennas RF Procurement Notes

Verify the specific suffix variant required for your design, as dimensions and performance may vary between standard and extended length versions. Confirm connector compatibility with your system's RF interface. Request official datasheets to validate mechanical footprint and electrical parameters against your schematic requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when space constraints require a low-profile, flexible antenna solution. Ensure the host device accommodates the specific frequency bands supported by the component. Consider the adhesive mounting requirement during mechanical design. Verify that the peak gain characteristics meet the link budget requirements for the intended application range.

Antennas RF Part Context

This component belongs to Synzen's series of flexible PCB trace antennas. These are engineered for modern wireless communication devices requiring reliable signal transmission in confined spaces. The product line addresses the need for integrated solutions in portable electronics and IoT sensors.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Designers should consult Synzen directly for equivalent models or verify compatibility with alternative suppliers based on exact electrical and mechanical specifications.
