SZK-C-0W08-050-01

Antennas RF Overview

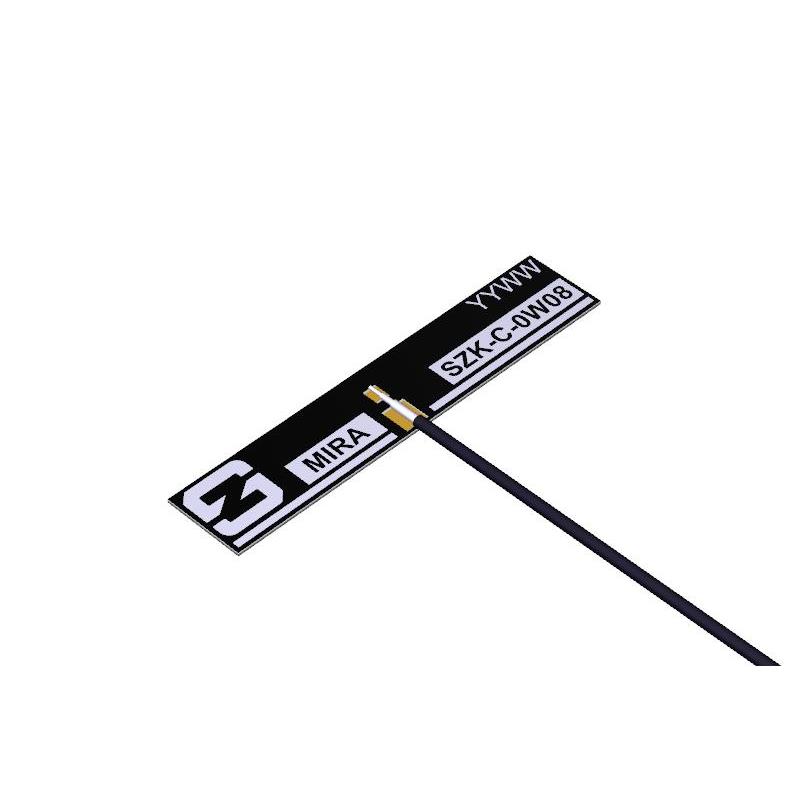

The Synzen SZK-C-0W08-050-01 is a flat patch RF antenna designed for multi-band wireless applications. It supports IEEE 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, and Wi-Fi 6E standards. The operational frequency range spans 2.4GHz to 6GHz, specifically covering 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, and 5.925GHz ~ 7.125GHz. Key electrical parameters include gains of 3.4dBi, 4.2dBi, and 4.85dBi, with VSWR values of 1.85, 1.9, and 3.2.

Antennas RF Feature Summary

• Multi-band support for Wi-Fi 6E and Bluetooth
• Flat patch design with IPEX MHF1 connector

Antennas RF Applications

• Wi-Fi 6E router integration
• Bluetooth device connectivity
• IoT sensor modules

Antennas RF Procurement Notes

Verify the specific gain and VSWR requirements against the three listed parameter sets (3.4dBi/1.85, 4.2dBi/1.9, 4.85dBi/3.2) as these may correspond to different frequency bands or manufacturing batches. Confirm the IPEX MHF1 interface compatibility with the host PCB layout before finalizing the order.

Antennas RF Selection Notes

Select this component when designing systems requiring simultaneous operation across 2.4GHz, 5GHz, and 6GHz bands. Ensure the application environment accommodates the physical dimensions of a flat patch antenna. Consider the MIRA series characteristics if broader family compatibility is required.

Antennas RF Part Context

This part belongs to the Synzen MIRA series of RF antennas. It is categorized under flat patch antennas suitable for compact electronic devices. The manufacturer provides datasheets detailing the electrical performance across the specified frequency ranges.

Antennas RF Replacement Considerations

Check Synzen's official documentation for direct substitutes within the MIRA series that match the exact gain and VSWR specifications. Verify connector type and mounting style compatibility before considering alternative models.
