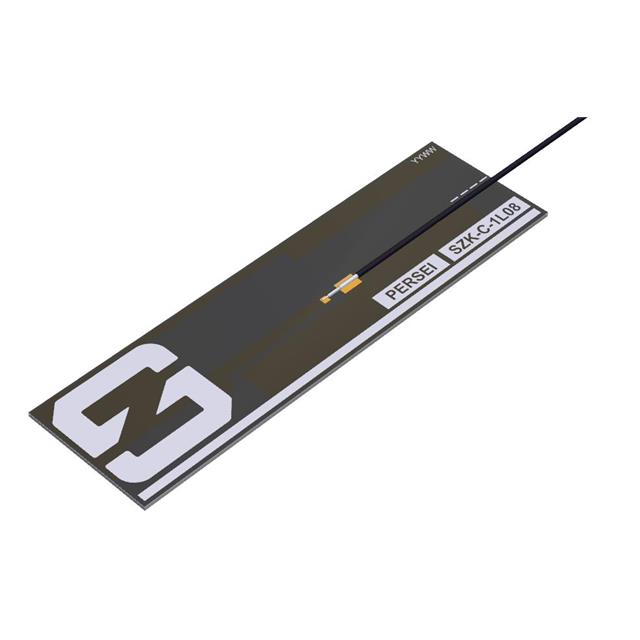

SZK-C-1L08

Description：4G LTE FLAT PATCH IPEX (FR4)
Series：-
Mfr：Synzen
Package：Bag

SKU:5584a23f0c9c Category: RF Antennas Brand: Synzen

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SZK-C-1L08 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 4G LTE FLAT PATCH IPEX (FR4). Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZK-C-1L08

Description：4G LTE FLAT PATCH IPEX (FR4)
Series：-
Mfr：Synzen
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.955GHz, 2.35GHz, 2.595GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Antenna Type：PCB Trace
Number of Bands：4
VSWR：1.5, 1.7, 1.75, 2.9
Return Loss：-6dB, -11.3dB, -11.4dB, -13.8dB
Gain：2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi
Features：Cable - 150mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.024" (0.60mm)
Applications：2G, 3G, 4G, LTE
Power - Max：5 W

Antennas RF datasheet and documents for SZK-C-1L08

SZK-C-1L08

Antennas RF Overview

The Synzen SZK-C-1L08 is an ultra-small PCB trace antenna designed for 2G, 3G, 4G, and LTE cellular applications. It features a surface mount configuration with a 150mm cable and supports multiple connector types including U.FL (UMCC) and I-PEX MHF1. The component operates across key frequency bands: 829MHz, 1.955GHz, 2.35GHz, and 2.595GHz. Gain specifications vary by band, ranging from 2.3dBi to 3.5dBi. This design enables simple integration without onboard antenna design requirements.

Antennas RF Feature Summary

Ultra-small form factor suitable for compact device integration
Supports multi-band cellular communication standards
Plug-and-operate capability simplifying system design

Antennas RF Applications

4G LTE devices
Cellular IoT modules
Mobile communication hardware

Antennas RF Procurement Notes

Verify the specific connector type required for your assembly, as the product line includes variations such as U.FL and I-PEX MHF1 interfaces. Confirm that the 150mm cable length aligns with your mechanical constraints. Ensure compatibility with the target frequency bands for your regional network requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when space constraints prevent traditional antenna designs. It is appropriate for applications requiring support for multiple cellular generations without complex RF tuning. Consider the gain variation across different frequency bands when evaluating signal performance needs for specific operational regions.

Antennas RF Part Context

This component belongs to Synzen's series of ultra-small antennas aimed at simplifying cellular integration. It addresses the need for compact solutions in modern mobile devices where internal space is limited. The design focuses on reducing development time by eliminating the need for custom onboard antenna engineering.
