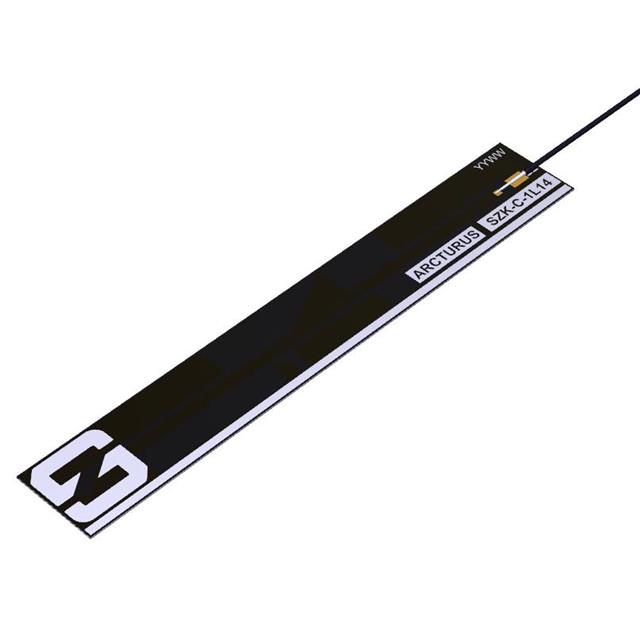

SZK-C-1L14

$4.68

Description：5G ANT FLAT PATCH IPEX
Series：ARCTURUS
Mfr：Synzen
Package：Bag

SKU:ca8f78001d17 Category: RF Antennas Brand: Synzen

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SZK-C-1L14 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 5G ANT FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZK-C-1L14

Description：5G ANT FLAT PATCH IPEX
Series：ARCTURUS
Mfr：Synzen
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：788.5MHz, 1.5435GHz, 1.955GHz, 2.35GHz
Frequency Range：617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz
Antenna Type：PCB Trace
Number of Bands：4
VSWR：1.3, 2.3, 4, 5.9
Return Loss：-3dB, -4.4dB, -8dB, -17dB
Gain：2.8dBi, 1.2dBi, 2.9dBi, 3.2dBi
Features：Cable - 180mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.008" (0.20mm)
Applications：2G, 3G, 4G, 5G
Power - Max：5 W

Antennas RF datasheet and documents for SZK-C-1L14

SZK-C-1L14

Antennas RF Overview

The Synzen SZK-C-1L14 is an active cellular FPC antenna designed for wide-band applications including 2G, 3G, 4G LTE, 5G, NB-IoT, and CAT-M. It supports frequency ranges of 617–960MHz, 1.427–1.66GHz, 1.71–2.2GHz, and 2.3–2.4GHz, with center frequencies at 788.5MHz, 1.5435GHz, 1.955GHz, and 2.35GHz. The component features a 180mm cable, adhesive mounting type, and IPEX MHF1/U.FL connector interface.

Antennas RF Feature Summary

Flexible printed circuit construction suitable for compact device integration
Wide-band coverage supporting multiple cellular standards and 5G bands
Integrated 180mm cable with standard IPEX MHF1 or U.FL connector

Antennas RF Applications

5G mobile communication devices
4G LTE smartphones and tablets
NB-IoT and CAT-M connected devices
Multi-standard cellular handsets

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm cable length and connector type variations. Ensure compatibility with the target device's internal space constraints due to the flexible form factor. Confirm that the adhesive backing meets the mechanical requirements of the assembly environment. Cross-reference the frequency specifications against regional carrier band allocations to ensure regulatory compliance and optimal performance in the intended market.

Antennas RF Selection Notes

Select this model when multi-band cellular support including 5G is required within a limited form factor. The integrated cable simplifies routing compared to direct PCB trace antennas. Consider the 180mm lead length for placement flexibility relative to the RF module. Verify that the adhesive mounting method aligns with the chassis material and surface preparation capabilities of the production line.

Antennas RF Part Context

This component belongs to Synzen's ARCTURUS series of cellular FPC antennas. It is positioned as a solution for modern mobile devices requiring broad spectrum coverage without complex onboard antenna design. The product replaces discrete antenna elements by integrating multiple band support into a single flexible substrate, streamlining the bill of materials for manufacturers.
