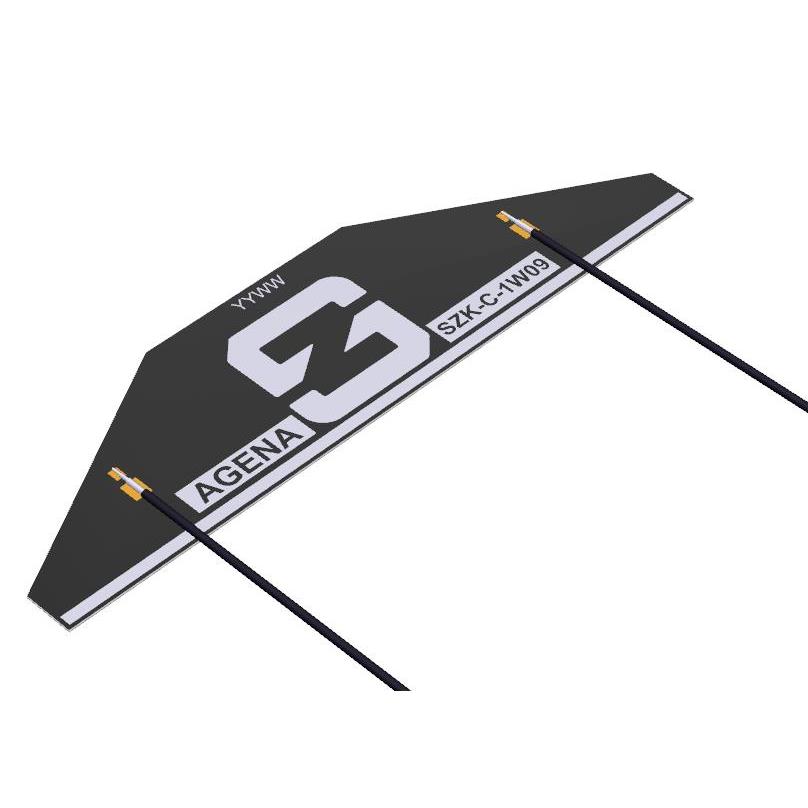

SZK-C-1W09-050-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 2.4GHz, 5GHz, 6GHz 802.11ax, 802. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZK-C-1W09-050-01
- Description：2.4GHz, 5GHz, 6GHz 802.11ax, 802
- Series：WOLF
- Mfr：Synzen
- Package：Bulk
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4GHz, 5GHz, 6GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Flat Patch
- Number of Bands：3
- VSWR：1.8, 2.2, 2.6
- Return Loss：-10dB, -8.5dB, -7dB
- Gain：1.85dBi, 5.50dBi, 3.40dBi
- Features：Cable - 50mm
- Termination：IPEX MHF1, U.FL (UMCC)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
- Power - Max：3 W
Antennas RF datasheet and documents for SZK-C-1W09-050-01
Antennas RF Overview
The Synzen SZK-C-1W09-050-01 is an RF antenna designed for wireless communication applications. It supports the 802.11ax, 802.15.4, and Bluetooth protocols across 2.4GHz, 5GHz, and 6GHz frequency bands. The component belongs to the WOLF series. Technical specifications include a gain of 1.85dBi at 2.4GHz, 3.4dBi at 5GHz, and 5.5dBi at 6GHz. Voltage Standing Wave Ratio (VSWR) values are 1.8, 2.6, and 2.2 respectively for these bands.
Antennas RF Feature Summary
- Supports multiple wireless standards including Wi-Fi 6E, Bluetooth, and IEEE 802.15.4
- Operates across dual-band and tri-band frequencies from 2.4GHz to 6GHz
- Optimized gain performance for specific frequency ranges
Antennas RF Applications
- Wi-Fi 6E routers and access points
- Bluetooth-enabled IoT devices
- Multi-standard wireless gateways
Antennas RF Procurement Notes
Verify the exact datasheet provided by Synzen or authorized distributors to confirm mechanical dimensions and pinout configurations. Ensure compatibility with the target PCB layout and IPEX connector type before procurement. Cross-reference the part number with official manufacturer catalogs to avoid counterfeit components.
Antennas RF Selection Notes
Select this antenna when multi-band support for 2.4GHz, 5GHz, and 6GHz is required in a compact form factor. Consider the specific VSWR requirements for each band to ensure signal integrity. Evaluate the gain characteristics against the system's link budget needs for optimal range and throughput.
Antennas RF Part Context
This component is part of Synzen's WOLF series of RF antennas. It is engineered for high-performance wireless connectivity in modern electronic devices. The design focuses on integrating multiple frequency bands into a single compact solution suitable for space-constrained applications.
Antennas RF Replacement Considerations
Check Synzen's official documentation for direct substitutes within the WOLF series. Verify that any alternative part maintains identical frequency coverage and connector compatibility.
