SZK-C-2G19-150-01

Antennas RF Overview

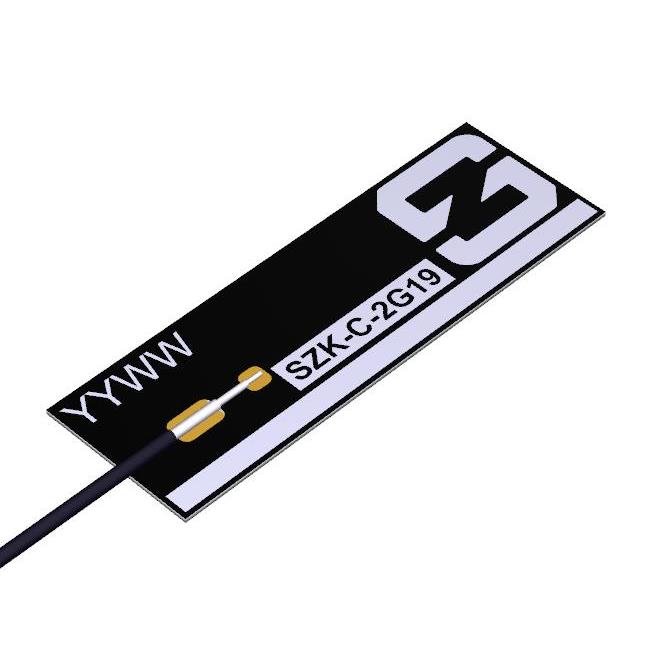

The SZK-C-2G19-150-01 is a flat patch GNSS antenna manufactured by Synzen. It supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and Beidou. The component utilizes an IPEX MHF1 or U.FL (UMCC) connector interface for RF connection. It features an adhesive mounting method suitable for integration into compact electronic devices.

Antennas RF Feature Summary

• Supports multi-constellation GNSS reception including GPS, GLONASS, Galileo, and Beidou signals
• Utilizes a low-profile flat patch design optimized for space-constrained applications
• Equipped with an IPEX MHF1 or U.FL connector for direct RF interfacing
• Features an adhesive backing for secure surface mounting

Antennas RF Applications

• Global Navigation Satellite System receiver modules
• Automotive telematics and tracking devices
• Portable consumer electronics requiring location services
• IoT sensors and embedded positioning hardware

Antennas RF Procurement Notes

Verify the specific connector type required for your PCB layout, as the component uses an IPEX MHF1 or U.FL interface. Confirm that the adhesive mounting style aligns with your assembly process and surface requirements. Ensure compatibility with the target GNSS protocols before finalizing procurement.

Antennas RF Selection Notes

Select this component when multi-band GNSS support is required in a minimal form factor. The flat patch architecture offers a balance between performance and profile height. Consider the adhesive mounting constraint if mechanical fastening is preferred over bonding.

Antennas RF Part Context

This part belongs to Synzen's RF Antenna product line, specifically categorized under GNSS solutions. It addresses the need for reliable positioning data in modern wireless devices. The model number indicates its specific configuration within the manufacturer's flat patch series.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and impedance matching if considering alternative vendors.
