SZK-C-2L18-100-01

$3.63

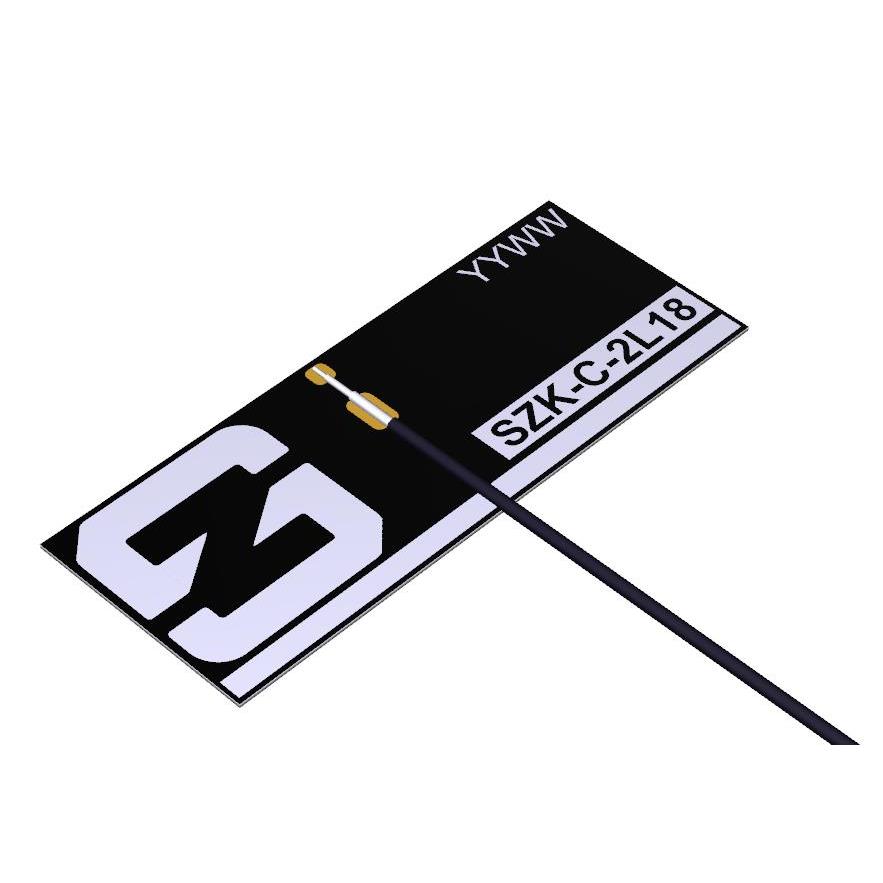

Description：4G LTE ANT FLAT PATCH IPEX
Series：AVIOR
Mfr：Synzen
Package：Bulk

SKU:f726dffde00f Category: RF Antennas Brand: Synzen

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SZK-C-2L18-100-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 4G LTE ANT FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZK-C-2L18-100-01

Description：4G LTE ANT FLAT PATCH IPEX
Series：AVIOR
Mfr：Synzen
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：875.5MHz, 1.955GHz, 2.35GHz, 2.595GHz
Frequency Range：791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Antenna Type：Flat Patch
Number of Bands：4
VSWR：-
Return Loss：-
Gain：2.88dBi, 4.31dBi, 1.95dBi, 2.01dBi
Features：Cable - 100mm
Termination：I-PEX MHFI (U.FL)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.008" (0.20mm)
Applications：2G, 3G, 4G, LTE
Power - Max：-

Antennas RF datasheet and documents for SZK-C-2L18-100-01

SZK-C-2L18-100-01

Antennas RF Overview

The Synzen SZK-C-2L18-100-01 is a flat patch RF antenna designed for 2G, 3G, 4G, LTE, M2M, and NB-IoT applications. It features an I-PEX MHFI (U.FL) connector interface and utilizes adhesive mounting. The unit measures 100 mm in length and operates within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

Supports multi-band connectivity including 2G, 3G, 4G, LTE, M2M, and NB-IoT
Utilizes a compact flat patch design with adhesive mounting
Equipped with an I-PEX MHFI (U.FL) connector interface

Antennas RF Applications

NB-IoT device integration
LTE module connectivity
M2M communication systems

Antennas RF Procurement Notes

Verify the specific datasheet revision against the manufacturer's official documentation before procurement. Confirm that the I-PEX MHFI connector orientation and adhesive backing specifications align with the target assembly requirements. Ensure environmental ratings meet the operational temperature constraints of the final product deployment.

Antennas RF Selection Notes

Select this component when a low-profile solution is required for cellular and LPWA modules. The flat patch form factor allows for flexible placement within constrained enclosures. The integrated adhesive simplifies the manufacturing process by eliminating the need for additional mechanical fasteners or brackets during assembly.

Antennas RF Part Context

This model belongs to the Synzen AVIOR series of FPC antennas. It is engineered for modern wireless communication standards requiring reliable signal transmission in compact electronic devices. The design prioritizes space efficiency while maintaining performance across multiple frequency bands.

Antennas RF Replacement Considerations

Cross-reference part numbers such as SZK-C-2L18 variants from the same manufacturer family. Verify connector type and physical dimensions before substitution to ensure mechanical compatibility.
