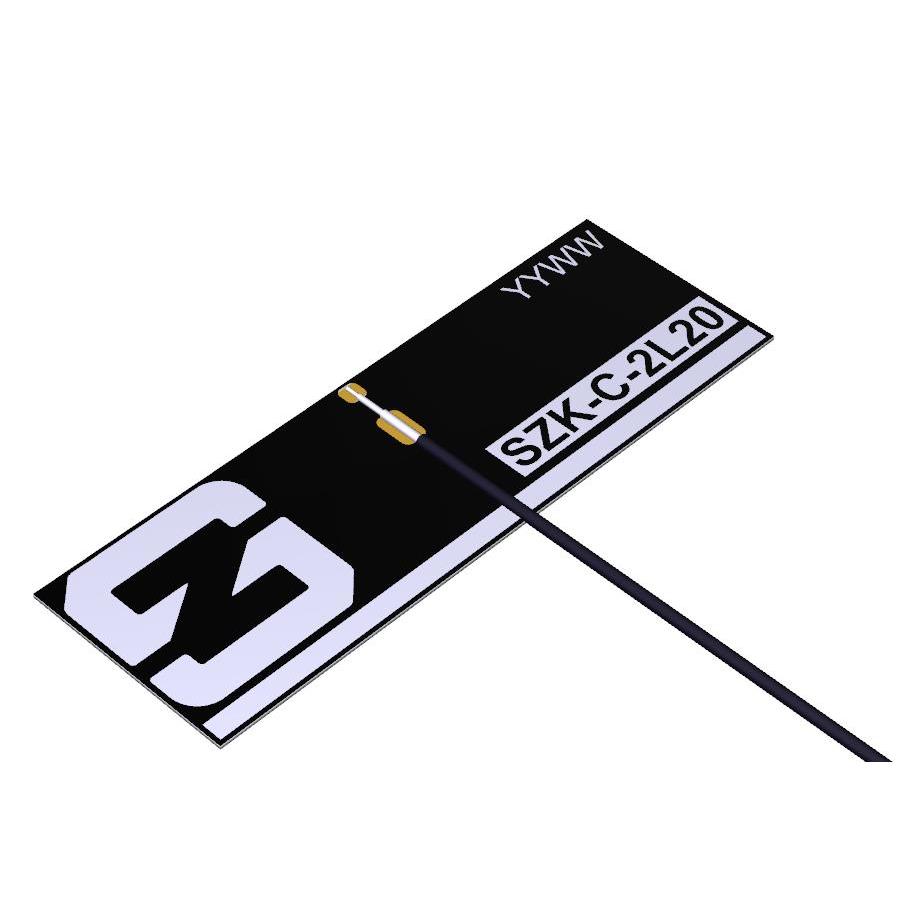

SZK-C-2L20-100-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 4G LTE ANT FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZK-C-2L20-100-01
- Description：4G LTE ANT FLAT PATCH IPEX
- Series：PETRA
- Mfr：Synzen
- Package：-
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.955GHz, 2.35GHz, 2.595GHz
- Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
- Antenna Type：Flat Patch
- Number of Bands：4
- VSWR：-
- Return Loss：-
- Gain：3.35dBi, 2.37dBi, 2.21dBi, 2.59dBi
- Features：Cable - 100mm
- Termination：I-PEX MHFI (U.FL)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：2G, 3G, 4G, LTE
- Power - Max：-
Antennas RF datasheet and documents for SZK-C-2L20-100-01
Antennas RF Overview
The Synzen SZK-C-2L20-100-01 is an RF antenna designed for multi-band wireless communication applications. It supports 2G, 3G, 4G, LTE, M2M, and NB-IoT technologies. The component features a flat patch design with an I-PEX MHFI (U.FL) connector interface. Operating frequency ranges include 698MHz to 960MHz, 829MHz, 1.71GHz to 2.2GHz, 1.955GHz, 2.35GHz, and 2.595GHz. This configuration ensures compatibility with various cellular network standards.
Antennas RF Feature Summary
- Supports multiple wireless standards including 2G, 3G, 4G, LTE, M2M, and NB-IoT
- Utilizes a flat patch form factor for compact integration
- Equipped with an I-PEX MHFI (U.FL) connector for secure attachment
Antennas RF Applications
- Mobile devices requiring multi-band connectivity
- IoT modules supporting NB-IoT and M2M protocols
- LTE-enabled handheld equipment
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm exact electrical parameters and mechanical dimensions. Ensure the I-PEX MHFI connector type matches the host device's mating port. Cross-reference the frequency bands against local regulatory requirements for intended markets. Confirm adhesive backing specifications if surface mounting is required.
Antennas RF Selection Notes
Select this model when multi-band support across legacy and modern cellular networks is necessary. The flat patch design suits space-constrained enclosures. Verify that the U.FL connector orientation aligns with PCB layout constraints. Consider environmental ratings if deployment involves harsh conditions.
Antennas RF Part Context
This part belongs to the Synzen SZK-C-2L20 series of RF antennas. The series offers variations in cable length and connector types. The -100-01 suffix typically denotes specific cable length or packaging configurations within the product line. It serves as a direct replacement for similar multi-band patch antennas in mobile hardware designs.
Antennas RF Replacement Considerations
Direct substitutes include other Synzen models from the SZK-C-2L20 series with compatible connectors. Verify equivalent frequency coverage before swapping. Ensure mechanical footprint and connector polarity match the original design to avoid rework.
