SZK-C-2L28-100-01

Antennas RF Overview

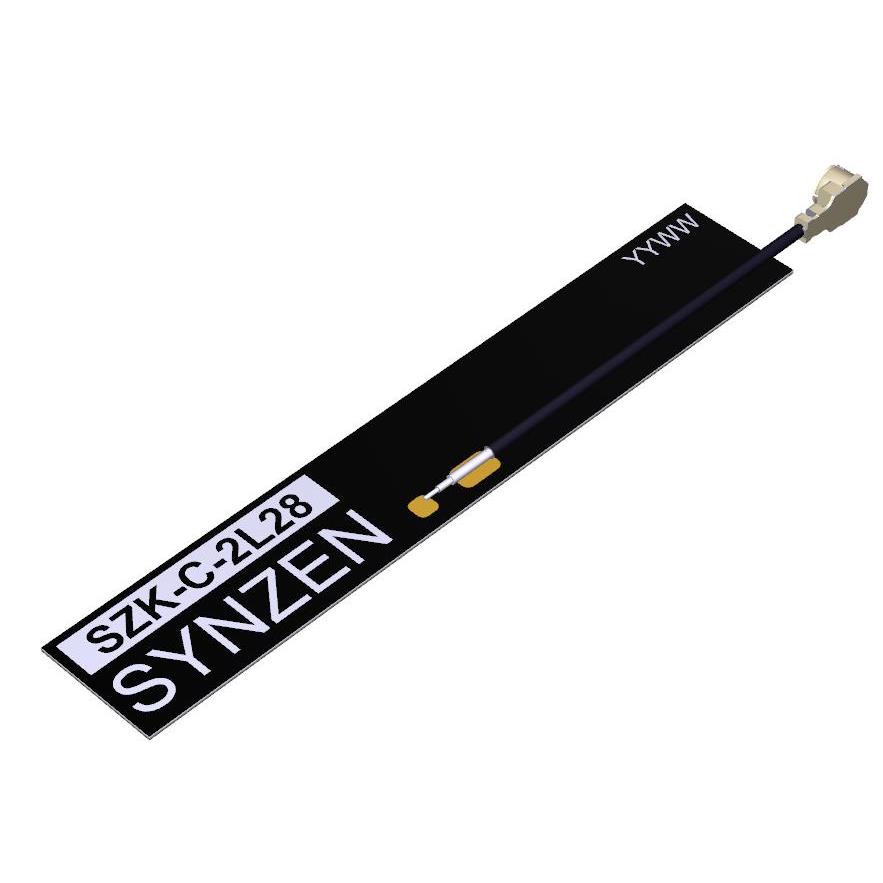

The Synzen SZK-C-2L28-100-01 is a flat patch RF antenna designed for 4G and LTE communication systems. It utilizes an MHF1 connector interface and employs adhesive mounting for secure installation. The component supports NB-IoT applications, providing a compact solution for wireless connectivity in electronic devices requiring reliable signal transmission.

Antennas RF Feature Summary

• Supports 4G, LTE, and NB-IoT frequency bands
• Features an MHF1 connector interface
• Utilizes adhesive mounting method

Antennas RF Applications

• 4G communication modules
• LTE device integration
• NB-IoT hardware implementation

Antennas RF Procurement Notes

Verify the specific model suffix against official Synzen documentation to confirm connector type and mounting style. Ensure compatibility with the target device's RF circuit design and spatial constraints before procurement. Cross-reference the part number with authorized distributors to confirm current availability and authenticity.

Antennas RF Selection Notes

Select this antenna when a low-profile, adhesive-mounted solution is required for 4G, LTE, or NB-IoT applications. The MHF1 interface dictates connector compatibility on the host PCB. Evaluate spatial requirements and adhesive strength needs relative to the final product enclosure design.

Antennas RF Part Context

This part belongs to the Synzen SZK-C series of flat patch antennas. These components are engineered for embedded wireless applications where space is limited. The series offers various configurations tailored for different cellular standards and connector types.

Antennas RF Replacement Considerations

Check Synzen datasheets for alternative models within the SZK-C series that match the required frequency bands and connector interface. Verify mechanical dimensions and mounting methods to ensure interchangeability without redesigning the host assembly.
