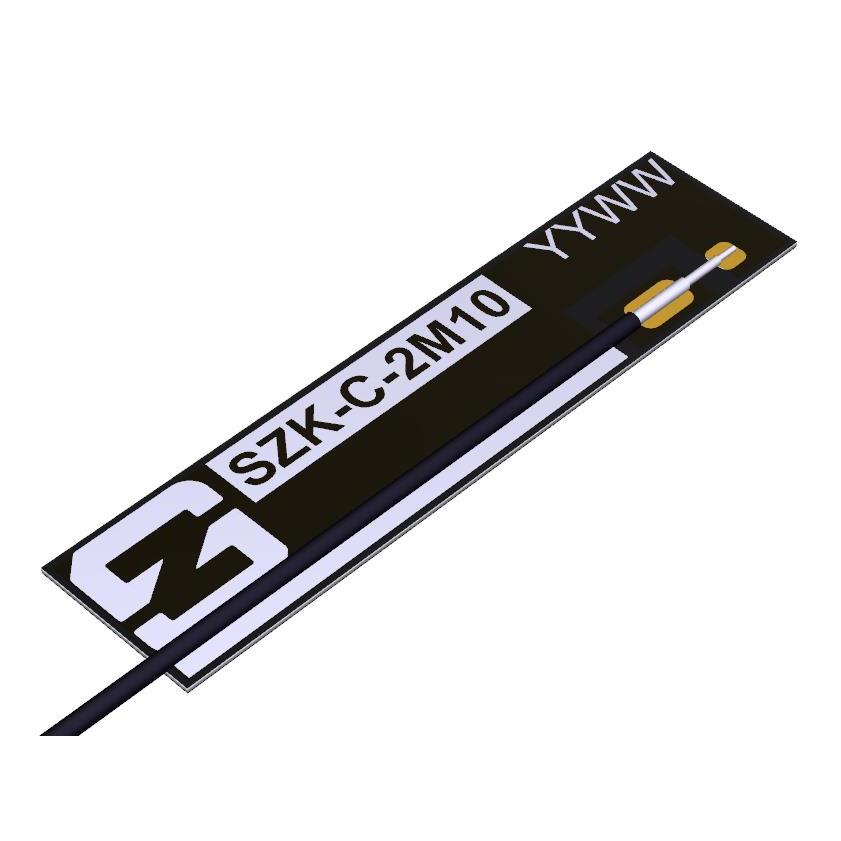

SZK-C-2M10-050-01

SZK-C-2M10-050-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is ISM ANT 868/915 FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZK-C-2M10-050-01

• Description：ISM ANT 868/915 FLAT PATCH IPEX
• Series：DRACONIS
• Mfr：Synzen
• Package：Bulk
• RF Family/Standard：General ISM
• Frequency Group：UHF (300MHz ~ 1GHz)
• Frequency (Center/Band)：868MHz, 915MHz
• Frequency Range：863MHz ~ 870MHz, 902MHz ~ 928MHz
• Antenna Type：Flat Patch
• Number of Bands：2
• VSWR：2, 2
• Return Loss：-10dB
• Gain：1.4dBi, 0.76dBi
• Features：Cable - 50mm
• Termination：IPEX MHF1, U.FL (UMCC)
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Adhesive
• Height (Max)：0.008" (0.20mm)
• Applications：ISM, LoRa
• Power - Max：-

Antennas RF datasheet and documents for SZK-C-2M10-050-01
