SZK-C-2M10

Antennas RF Overview

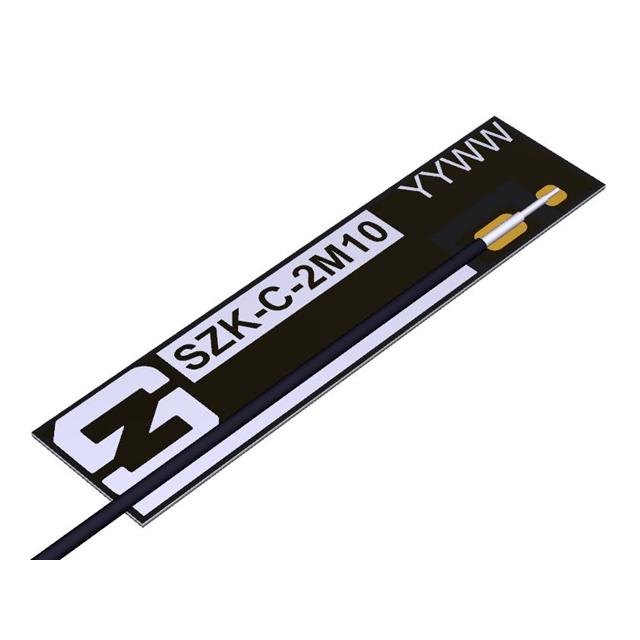

The SZK-C-2M10 is a dual-band ISM flat patch antenna manufactured by Synzen. It operates across the 868 MHz and 915 MHz frequency bands, supporting applications such as LoRa communication. The component features a peak gain of 1.4 dBi at 868 MHz and 0.76 dBi at 915 MHz. It utilizes an IPEX MHF1 connector interface for integration. The design incorporates adhesive mounting for secure attachment to device surfaces.

Antennas RF Feature Summary

• Dual-band operation covering 868 MHz and 915 MHz ISM frequencies
• Flat patch construction with adhesive backing for surface mounting
• Integrated IPEX MHF1 connector interface

Antennas RF Applications

• LoRa wireless communication devices
• ISM band IoT sensors
• Compact wireless modules requiring low-profile antennas

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and connector type. Confirm RoHS compliance status through official documentation. Ensure the adhesive mounting method aligns with the target device's mechanical constraints. Cross-reference the manufacturer datasheet for precise electrical specifications before procurement.

Antennas RF Selection Notes

Select this antenna for applications requiring dual-band support in the 868/915 MHz range. Consider the low profile and adhesive mounting when space is limited. Evaluate the peak gain requirements against the specific operational distance needs. Ensure compatibility with the IPEX MHF1 connector on the host PCB or cable assembly.

Antennas RF Part Context

This component belongs to Synzen's Draconis series of RF antennas. It is designed for compact wireless devices needing reliable performance in ISM bands. The flat patch form factor distinguishes it from traditional whip or chip antennas. It serves as a specialized solution for LoRa and similar long-range low-power protocols.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
