SZNUF8152MUT2G

Overview

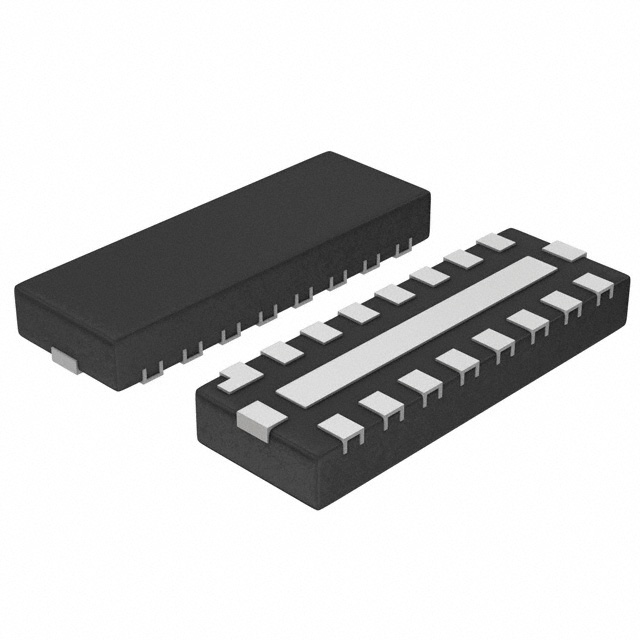

The SZNUF8152MUT2G is an 8-channel RC (Pi) EMI filter manufactured by onsemi. It integrates electrostatic discharge protection within a compact UDFN-16 package measuring 3.50mm x 1.20mm with a 0.4mm pitch. The device features a third-order low-pass configuration with integrated resistors of 28 Ohms per channel. It is designed for high-frequency signal lines and meets automotive AEC-Q101 qualification standards.

Feature Summary

• Integrates 8-channel RC Pi-filter topology with built-in ESD suppression capabilities
• Compact UDFN-16 surface-mount package optimized for space-constrained designs
• Qualified for automotive applications under the AEC-Q101 standard

Applications

• High-speed data line protection in automotive infotainment systems
• EMI suppression for USB and HDMI interfaces in consumer electronics
• Signal integrity enhancement in industrial communication modules

Procurement Notes

Verify the specific ordering suffix to ensure the component matches the required tape-and-reel quantity and packaging format. Confirm that the AEC-Q101 automotive qualification status aligns with your system's reliability requirements before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring simultaneous EMI filtering and ESD protection for multiple differential or single-ended lines. The 28-Ohm resistor value provides a specific impedance match suitable for certain high-speed digital interfaces, reducing the need for external discrete components.

Part Context

This part belongs to onsemi's NUF series of multi-channel EMI filters. It shares functional similarities with other models like the NUF8152MU but includes specific automotive grading and packaging variations indicated by the prefix and suffix structure.

Replacement Considerations

Direct substitutes include the NUF8152MU and NUF8152MUT2G from onsemi. Verify pin compatibility and electrical characteristics against the original design specifications before swapping.
