SZP-C-0L09

Antennas RF Overview

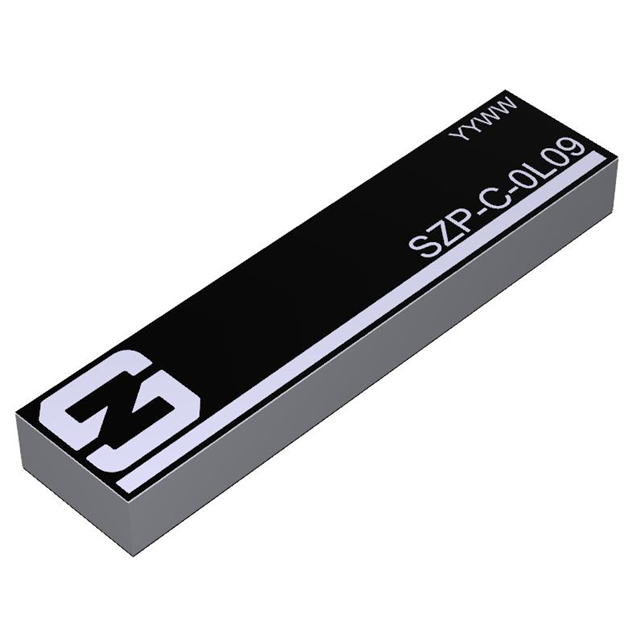

The Synzen SZP-C-0L09 is a surface-mount chip antenna designed for 4G LTE applications. It operates within the frequency range of 698 MHz to 2690 MHz, covering essential cellular bands including lower and upper LTE spectrum. The component features a compact physical footprint with dimensions of 30 x 7.0 x 3.3 mm, making it suitable for integration into space-constrained mobile devices. It utilizes solder surface mount technology for PCB assembly.

Antennas RF Feature Summary

• Designed for resistance to detuning effects in compact device environments
• Backward compatible with 3G and 2G systems alongside 4G LTE support

Antennas RF Applications

• Compact mobile communication devices requiring limited board space
• 4G LTE enabled consumer electronics
• IoT modules utilizing cellular connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical drawings from authorized Synzen distributors or official documentation before procurement. Confirm that the surface mount package type aligns with your PCB fabrication capabilities and reflow soldering profiles. Ensure the frequency coverage meets all regional regulatory requirements for your target market.

Antennas RF Selection Notes

Select this component when space optimization is critical for LTE-enabled hardware designs. The antenna's resistance to detuning makes it appropriate for dense internal layouts where nearby components might otherwise interfere with signal radiation. Consider its backward compatibility if future-proofing for legacy network modes is required.

Antennas RF Part Context

This part belongs to Synzen's portfolio of RF antennas, specifically targeting the growing demand for miniaturized wireless solutions. The manufacturer provides development kits, such as the SZDV-C-0L09, to assist engineers in validating performance characteristics during the design phase. These kits typically include the antenna fitted on a PCBA for radiated testing.
