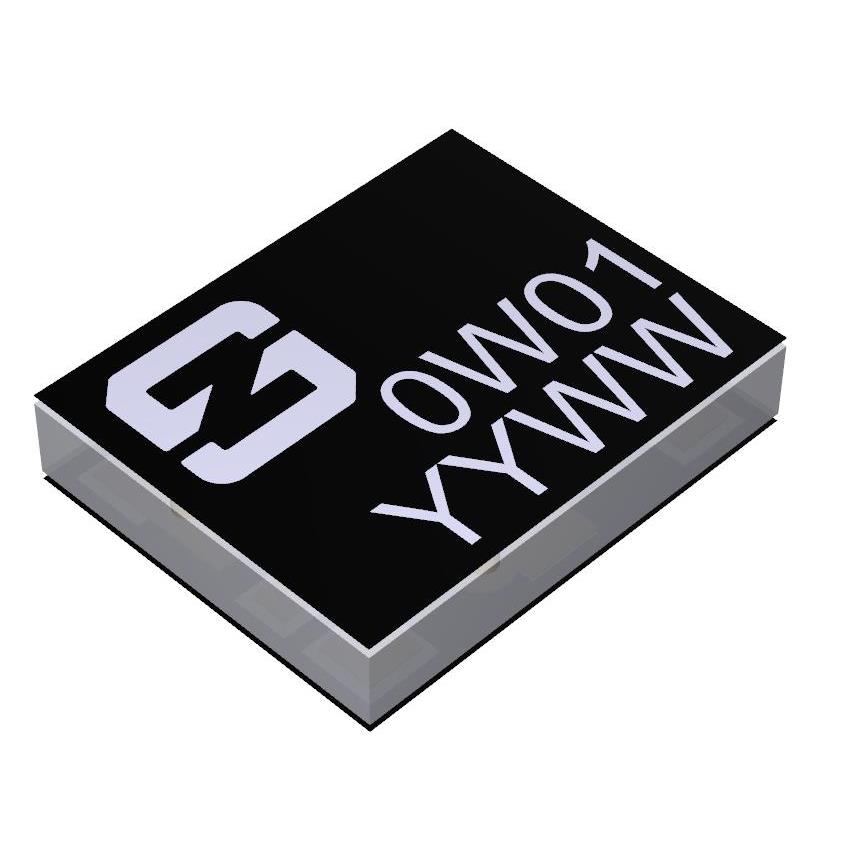

SZP-C-0W01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is WI-FI/BLE 2.4-2.5GHZ SMD CHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZP-C-0W01
- Description：WI-FI/BLE 2.4-2.5GHZ SMD CHIP
- Series：AULIN
- Mfr：Synzen
- Package：Tape & Reel (TR)
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2.1
- Return Loss：-8dB
- Gain：1.65dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.035" (0.90mm)
- Applications：Bluetooth, WLAN, Zigbee
- Power - Max：3 W
Antennas RF datasheet and documents for SZP-C-0W01
