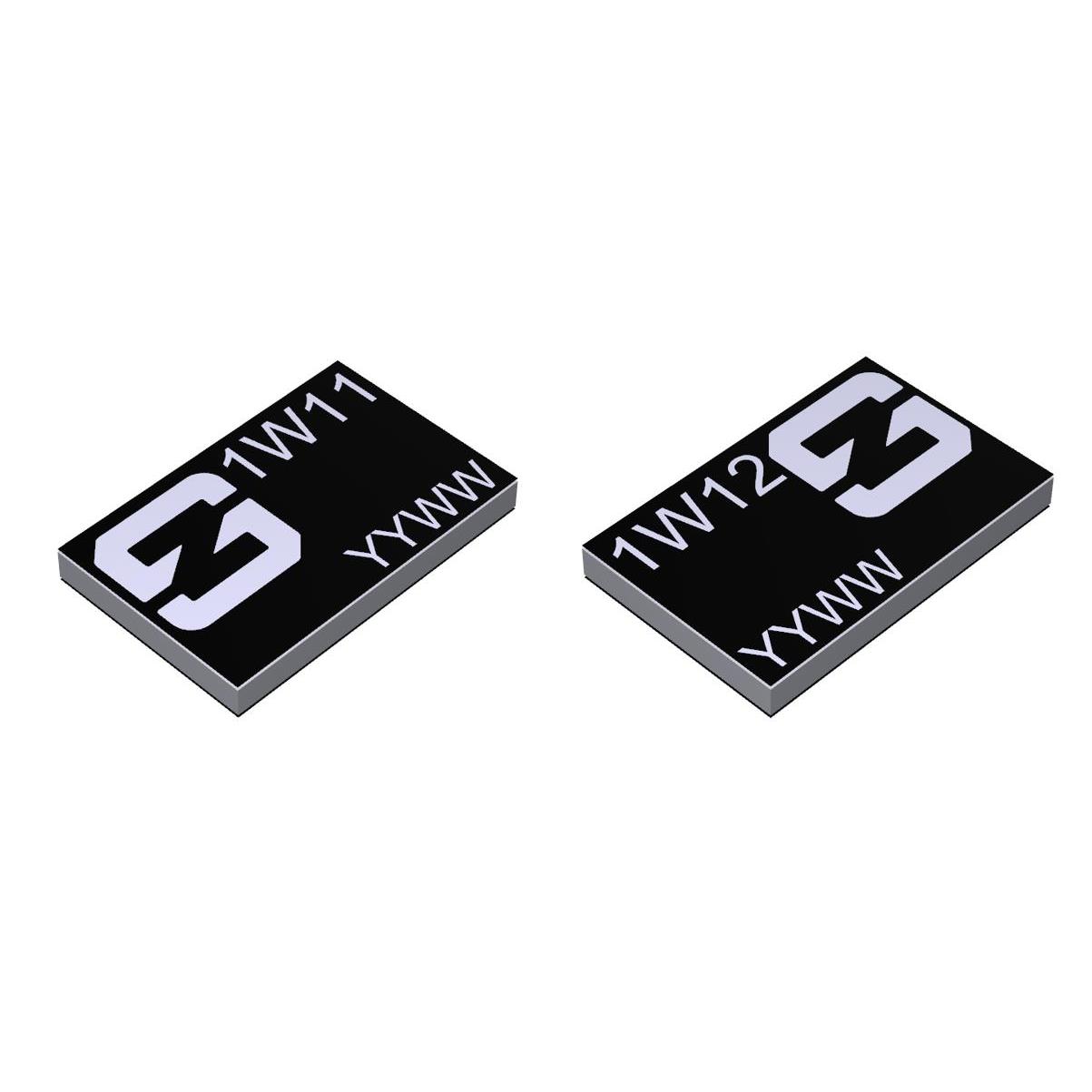

SZP-C-1W11 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is Tri-Band WLAN/BLE SMD Antenna Le. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZP-C-1W11
- Description：Tri-Band WLAN/BLE SMD Antenna Le
- Series：-
- Mfr：Synzen
- Package：Tape & Reel (TR)
- RF Family/Standard：WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：0.8dBi, 2.48dBi, 2.82dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.043" (1.10mm)
- Applications：Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for SZP-C-1W11
Antennas RF Overview
The Synzen SZP-C-1W11 is a surface-mount RF antenna designed for M2M, Wi-Fi, and WLAN applications. It operates within the 2.4GHz to 2.5GHz and 5.15GHz to 5.85GHz frequency ranges. The component features maximum heights of 0.043 inches (1.10mm). Gain specifications are documented at 0.8dBi, 2.48dBi, and 2.82dBi across its operational bands.
Antennas RF Feature Summary
- Surface mount construction suitable for compact embedded designs
- Dual-band operation supporting 2.4GHz and 5GHz wireless standards
- Optimized matching network integration for evaluation kits
Antennas RF Applications
- Wi-Fi connectivity modules
- WLAN embedded devices
- Machine-to-machine communication systems
Antennas RF Procurement Notes
Verify the specific datasheet revision and gain values against official Synzen documentation before procurement. Confirm that the selected variant matches the required frequency bands and physical dimensions for the target PCB layout. Ensure compatibility with the intended RF front-end circuitry.
Antennas RF Selection Notes
Select this component for applications requiring dual-band 2.4GHz and 5GHz support in space-constrained environments. Evaluate the specific gain requirements against the available options of 0.8dBi, 2.48dBi, and 2.82dBi. Consider the low profile height for integration into thin enclosures.
Antennas RF Part Context
This model belongs to Synzen's series of surface-mount antennas designed for wireless communication. It is often utilized in evaluation kits such as the SIRIUSb ADARA, where it is fitted with an optimized matching network. The component serves as a critical interface for RF signal transmission in modern IoT and mobile devices.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Synzen directly for alternative components with similar form factor and electrical characteristics.
