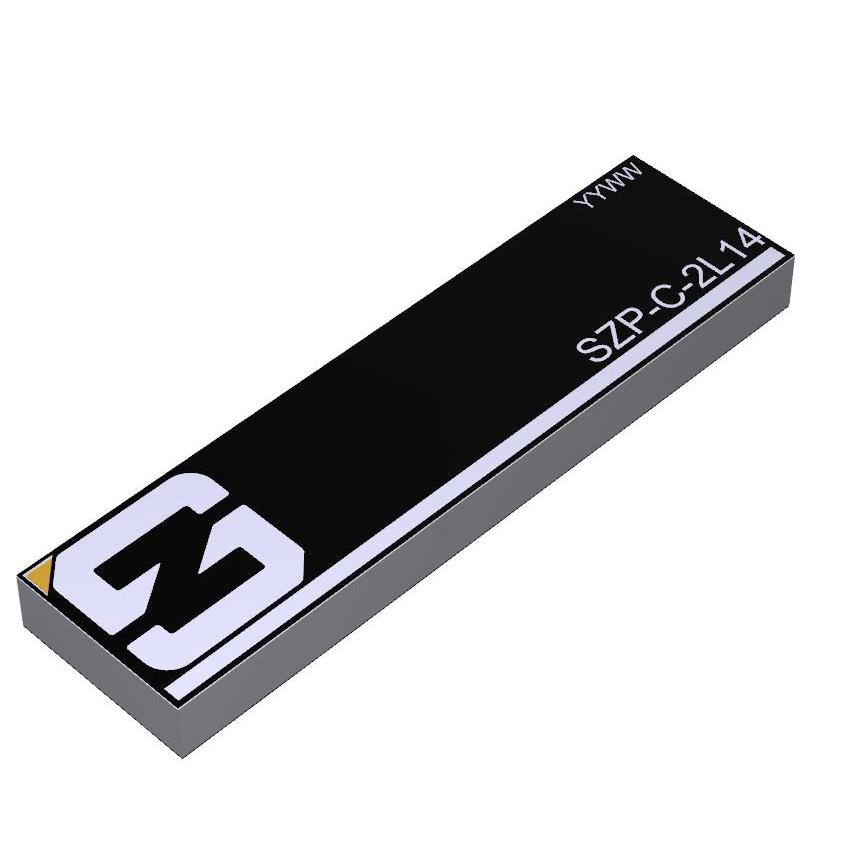

SZP-C-2L14 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 5G ANT 617-5000MHZ SMD CHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZP-C-2L14
- Description：5G ANT 617-5000MHZ SMD CHIP
- Series：-
- Mfr：Synzen
- Package：Tape & Reel (TR)
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz
- Frequency Range：617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
- Antenna Type：Chip
- Number of Bands：6
- VSWR：-
- Return Loss：-
- Gain：1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.130" (3.30mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：5 W
Antennas RF datasheet and documents for SZP-C-2L14
Antennas RF Overview
The Synzen SZP-C-2L14 is a surface-mount RF antenna designed for multi-band wireless communication applications. It supports 2G, 3G, 4G, and 5G LTE standards with an operational frequency range of 617 MHz to 5000 MHz. The component features peak gain values including 1.47 dBi, 0.01 dBi, 2.82 dBi, 3.69 dBi, 3.26 dBi, and 5.91 dBi across specified bands. Center frequencies include 788.5 MHz and 3.75 GHz. It is RoHS compliant and rated at Moisture Sensitivity Level 1 (MSL-1), ensuring unlimited shelf life without moisture control requirements.
Antennas RF Feature Summary
- Supports multi-band connectivity for 2G, 3G, 4G, and 5G LTE standards
- Surface mount chip design suitable for compact embedded devices
- RoHS compliant construction with MSL-1 rating for reliable storage
Antennas RF Applications
- 5G mobile communication modules
- 4G LTE embedded systems
- Compact wireless IoT devices
Antennas RF Procurement Notes
Verify the specific part number suffix against official Synzen documentation to confirm exact frequency coverage and performance specifications. Ensure compatibility with the target device's mechanical constraints and RF matching network requirements before procurement. Confirm RoHS compliance status if required by regional regulations.
Antennas RF Selection Notes
Select this component for applications requiring broad frequency coverage from sub-GHz to 5 GHz in a small form factor. Consider the peak gain variations across different bands when designing the RF front-end. Ensure the host PCB layout accommodates the surface-mount package dimensions and provides adequate ground plane integrity for optimal antenna performance.
Antennas RF Part Context
The SZP-C-2L14 belongs to Synzen’s series of precision RF antennas designed for modern wireless communication standards. It complements other models like the SZP-C-0L02 and SZP-C-2L23/24, offering specialized solutions for varying frequency ranges and device sizes within the manufacturer's portfolio.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Synzen technical support or authorized distributors for direct replacements or pin-compatible alternatives.
