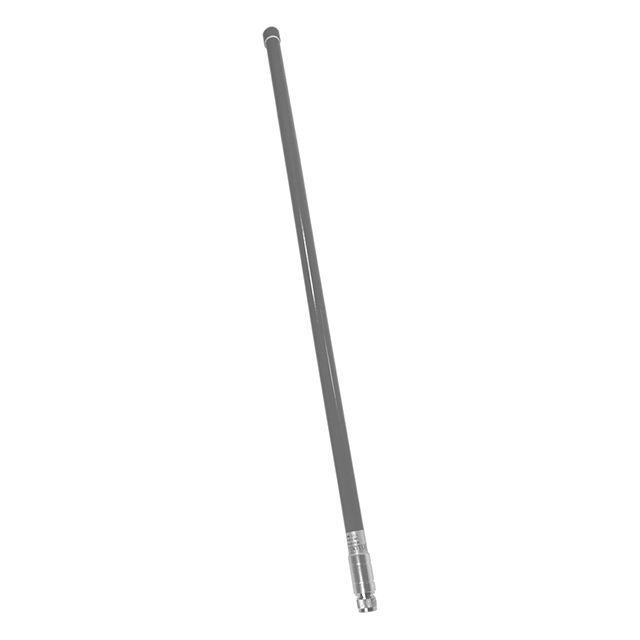

T0004619 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TEKTELIC Communications Inc.. Its product description is 6 DBI LORA ANTENNA, 868MHZ (EU). Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T0004619
- Description：6 DBI LORA ANTENNA, 868MHZ (EU)
- Series：-
- Mfr：TEKTELIC Communications Inc.
- Package：Box
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：865MHz
- Frequency Range：860MHz ~ 870MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：6dBi
- Features：-
- Termination：N Type
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：33.465" (850.00mm)
- Applications：General Purpose
- Power - Max：20 W
Antennas RF datasheet and documents for T0004619
Antennas RF Overview
The T0004619 is a general-purpose RF antenna manufactured by TEKTELIC Communications Inc. It features a straight whip design and utilizes an N-Type connector for mounting. This component is categorized under RF Antennas and is intended for use in wireless communication applications requiring omnidirectional signal transmission.
Antennas RF Feature Summary
- Straight whip antenna design
- N-Type connector interface
- General-purpose RF application
Antennas RF Applications
- LoRaWAN gateway integration
- IoT sensor network connectivity
- Industrial wireless communication systems
Antennas RF Procurement Notes
Verify the specific firmware or hardware revision compatibility with your existing TEKTELIC KONA Gateway or Transceiver units before procurement. Confirm that the N-Type connector orientation matches your installation requirements. Ensure the antenna is sourced from authorized distributors to guarantee authenticity and performance specifications aligned with official documentation.
Antennas RF Selection Notes
Select this model when a standard omnidirectional antenna is required for LoRaWAN infrastructure. The N-Type connector ensures secure mechanical attachment. Consider environmental factors such as wind load and corrosion resistance if deployed outdoors. Verify frequency band support against local regulatory requirements for the target deployment region.
Antennas RF Part Context
This antenna is part of TEKTELIC's ecosystem of IoT solutions, often paired with their KONA series gateways and transceivers. It supports the company's focus on providing end-to-end LoRaWAN infrastructure for industrial, building, and metering applications. The component enables reliable long-range communication for connected devices within the broader TEKTELIC product portfolio.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult TEKTELIC technical support for compatible alternatives if this specific model is discontinued or unavailable. Ensure any replacement maintains the N-Type connector interface and similar radiation pattern characteristics.
