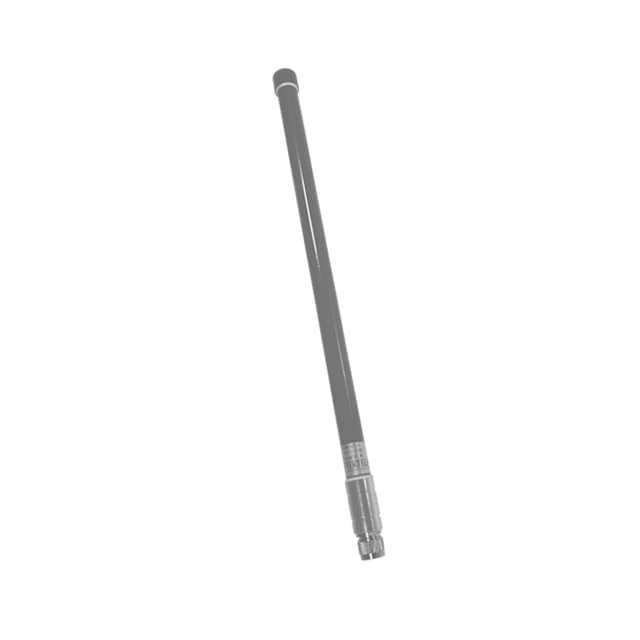

T0005419 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TEKTELIC Communications Inc.. Its product description is 3 DBI LORA ANTENNA, 868MHZ (EU). Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T0005419
- Description：3 DBI LORA ANTENNA, 868MHZ (EU)
- Series：-
- Mfr：TEKTELIC Communications Inc.
- Package：Box
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：865MHz
- Frequency Range：860MHz ~ 870MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：2.5dBi
- Features：-
- Termination：N Type
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：18.504" (470.00mm)
- Applications：General Purpose
- Power - Max：20 W
Antennas RF datasheet and documents for T0005419
Antennas RF Overview
The T0005419 is a directional RF antenna manufactured by TEKTELIC Communications Inc., designed for LoRaWAN applications in the European Union frequency band. It operates at 868 MHz with a gain of 3 dBi, providing focused signal coverage for IoT networks. The component features an N-Type connector interface for secure attachment to gateway equipment. This antenna supports reliable long-range communication within designated EU regulatory limits.
Antennas RF Feature Summary
- Directional radiation pattern optimized for specific coverage areas
- Engineered for LoRaWAN protocol compatibility
- Utilizes N-Type connector for robust physical connection
Antennas RF Applications
- LoRaWAN network infrastructure deployment
- European Union IoT gateway integration
- Industrial sensor network connectivity
Antennas RF Procurement Notes
Verify that the specific part number matches the required frequency band and connector type for your installation. Confirm RoHS compliance status through official documentation before procurement. Ensure the antenna is sourced from authorized channels to guarantee authenticity and performance specifications align with technical requirements.
Antennas RF Selection Notes
Select this model when directional coverage is required for LoRaWAN deployments in the EU region. Consider the 3 dBi gain and N-Type interface compatibility with existing gateway hardware. Evaluate spatial constraints and mounting requirements to ensure optimal orientation for the intended coverage area.
Antennas RF Part Context
This component belongs to the RF antenna category provided by TEKTELIC Communications Inc., a supplier specializing in LoRaWAN and NB-IoT solutions. The T0005419 serves as a peripheral accessory for their gateway systems, enhancing signal reach and reliability in structured IoT environments.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing gateway models before considering alternative components.
