T0007469

Antennas RF Overview

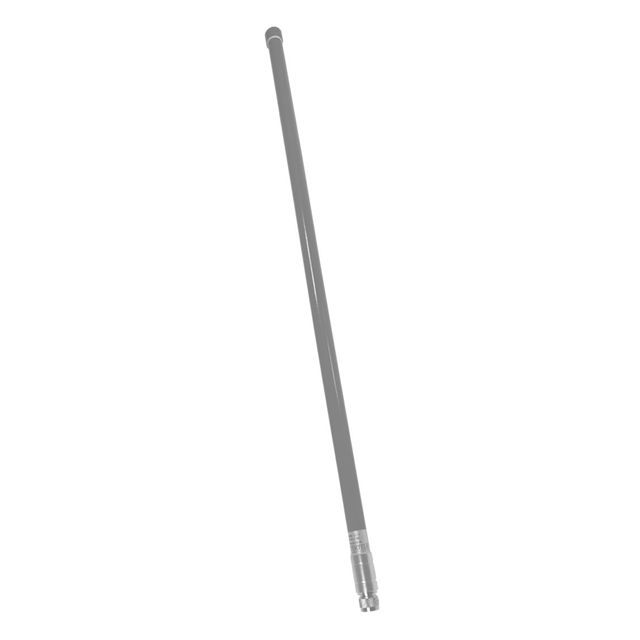

The T0007469 is a high-gain, omnidirectional whip antenna manufactured by TEKTELIC Communications Inc. It operates within the UHF frequency band ranging from 860 MHz to 930 MHz, with specific center frequencies at 865 MHz and 914 MHz. The component provides a gain of 6 dBi and utilizes vertical polarization. It features an N-J connector interface with a U-lock mechanism for secure attachment. Designed for industrial IoT applications, it supports LoRaWAN protocols.

Antennas RF Feature Summary

• Omnidirectional radiation pattern with vertical polarization
• High-gain design optimized for extended range
• Secure U-lock mounting mechanism on N-J connector

Antennas RF Applications

• Industrial IoT sensor networks
• LoRaWAN gateway installations
• UHF wireless communication infrastructure

Antennas RF Procurement Notes

Verify that the required frequency band aligns with local regulatory standards for your deployment region. Confirm compatibility with the N-J connector type on the target device. Ensure the physical dimensions and mounting requirements fit the installation environment. Cross-reference the center frequencies with the network architecture specifications.

Antennas RF Selection Notes

Select this antenna when a high-gain solution is required for UHF bands between 860 MHz and 930 MHz. The 6 dBi gain supports robust signal integrity in industrial settings. The U-lock feature ensures stability in vibration-prone environments. Verify that the N-J interface matches the existing hardware configuration before procurement.

Antennas RF Part Context

This component belongs to the TEKTELIC antenna portfolio designed for LoRaWAN and industrial wireless applications. It complements gateway modules such as the Kona series by providing reliable external connectivity. The product targets sectors requiring stable long-range communication over UHF frequencies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Ensure any alternative component matches the 860–930 MHz frequency range, 6 dBi gain specification, and N-J connector interface.
