Product Detailed Parameters
- Description：IC MPU QORIQ T1 1.2GHZ 780FBGA
- Series：QorIQ T1
- Mfr：NXP USA Inc.
- Package：Bulk,Tray
- Core Processor：PowerPC e5500
- Number of Cores/Bus Width：2 Core, 64-Bit
- Speed：1.2GHz
- Co-Processors/DSP：-
- RAM Controllers：DDR3L, DDR4
- Graphics Acceleration：No
- Display & Interface Controllers：-
- Ethernet：GbE (8)
- SATA：SATA 3Gbps (2)
- USB：USB 2.0 + PHY (2)
- Voltage - I/O：-
- Operating Temperature：0°C ~ 105°C (TA)
- Security Features：Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage
- Mounting Type：Surface Mount

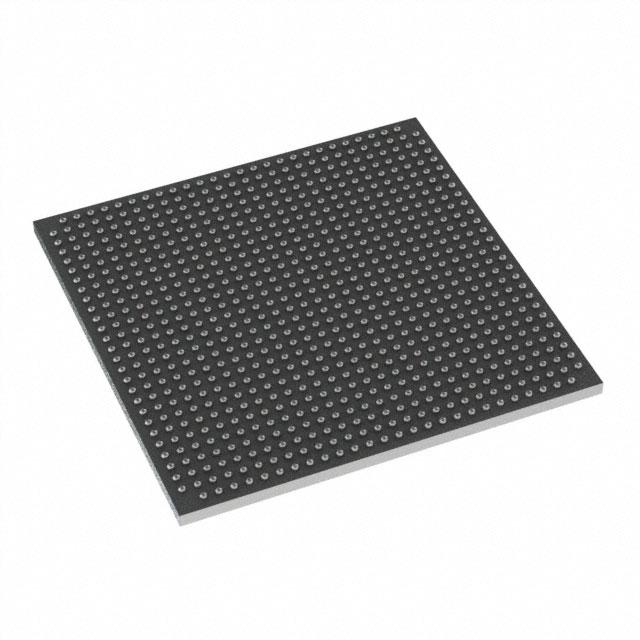

- Package / Case：780-FBGA
- Supplier Device Package：780-FBGA (23x23)
- Additional Interfaces：I2C, MMC/SD, PCIe, SPI, UART
- Grade：-
- Qualification：-
Download product information
Overview
The T1024NSE7MQA is a QorIQ Power Architecture microprocessor featuring two e5500 cores operating at 1.2 GHz within a 64-bit architecture. It utilizes an FCPBGA-780 package and supports DDR3L/DDR4 SDRAM with ECC. The device integrates hardware acceleration for security (SEC) and data path processing (DPAA), alongside interfaces including PCIe, USB, I2C, UART, and Ethernet. It operates within a commercial temperature range of 0°C to +105°C.
Feature Summary
- Dual-core e5500 processor with integrated DPAA for packet classification and distribution
- Integrated Security Engine (SEC) for cryptographic acceleration
- Supports high-speed SerDes lanes for PCIe, SATA, and Ethernet connectivity
- Includes CoreNet platform cache for coherent interconnect management
Applications
- Industrial networking systems
- Telecommunications infrastructure equipment
- Network appliances requiring hardware acceleration
- High-reliability always-on industrial applications
Procurement Notes
Verify the specific suffix MQPA against official NXP documentation to confirm the exact clock speed, temperature grade, and packaging details. Ensure compatibility with existing board designs regarding the FCPBGA-780 footprint and power requirements. Confirm that the commercial temperature range meets the operational environment specifications before finalizing procurement.
Selection Notes
Select this component when dual-core performance at 1.2 GHz is required for network processing tasks. It serves as a suitable upgrade path from 32-bit P10XX series processors due to software compatibility. Consider this model for designs needing integrated security acceleration and support for DDR3L/DDR4 memory standards in a compact form factor.
Part Context
This part belongs to the NXP QorIQ T1024 family, designed for communications processors. It shares pin compatibility with higher-core-count models like the T1042, allowing for scalable system design. The T-series platform emphasizes industrial optimization with features such as QUICC Engine support and display interface units for HMI applications.
Replacement Considerations
The T1024NXE7KQA is a verified alternative offering similar core architecture but with a 1.0 GHz frequency and extended -40°C to +105°C industrial temperature range.
