T10GC1-16.000MHZ-T

Crystals Overview

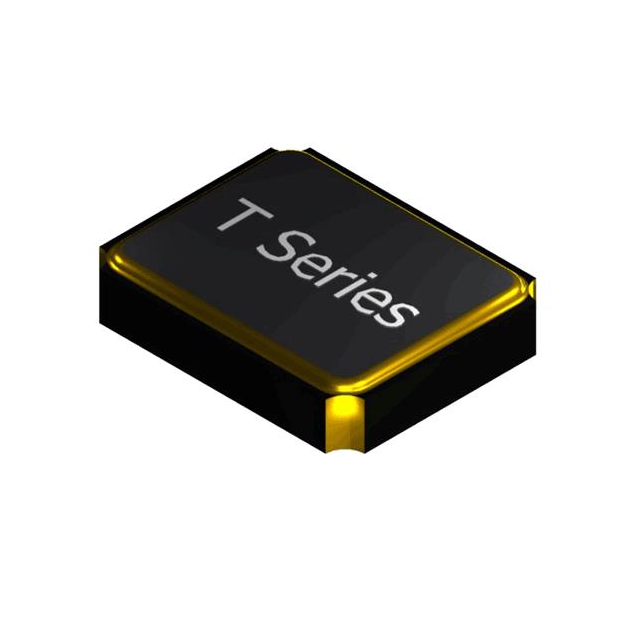

The MMD T10GC1-16.000MHZ-T is a passive quartz crystal oscillator designed for surface-mount applications, featuring a compact 3.2mm x 2.5mm SMD package with four terminals. It operates at a nominal frequency of 16 MHz with a frequency tolerance of ±10 ppm and a first-year aging stability of ±30 ppm. The component supports an operating temperature range from -40°C to +85°C, suitable for industrial environments. Electrical specifications include a maximum equivalent series resistance (ESR) of 100 Ohms, a load capacitance of 10 pF, and a drive level of 10 µW typical, with a maximum of 100 µW. The device utilizes fundamental AT-cut technology and complies with RoHS standards.

Crystals Feature Summary

• Compact 3.2mm x 2.5mm surface-mount footprint optimized for space-constrained circuit boards
• Fundamental AT-cut quartz construction ensuring reliable oscillation in low-power designs
• Industrial-grade thermal stability covering -40°C to +85°C operational range
• RoHS compliant manufacturing process for environmental safety

Crystals Applications

• Microcontroller unit (MCU) system clock generation
• Bluetooth and Wi-Fi peripheral timing references
• Industrial sensor node synchronization
• Low-power wearable device oscillators

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official part number guide to ensure correct tolerance and stability grades. Confirm that the ordering code matches the required frequency tolerance and aging specifications for your design. Check datasheet revisions for any updates to mechanical dimensions or electrical limits before finalizing procurement.

Crystals Selection Notes

Select this component when a standard 3225 footprint is required for industrial temperature ranges. Ensure the host circuit can support a 10 pF load capacitance and a drive level below 100 µW to prevent frequency deviation. Validate ESR compatibility with the oscillator circuit, particularly for cold-start performance at -40°C.

Crystals Part Context

This model belongs to the MMD T Series, a line of surface-mount crystals engineered for high-volume consumer and industrial electronics. The series emphasizes miniaturization without compromising stability, offering various frequency options within the 12 MHz to 54 MHz range across different package sizes.

Crystals Replacement Considerations

Cross-reference with other 3225 package crystals from manufacturers like Abracon or TXC. Ensure substitute parts match the 16 MHz frequency, ±10 ppm tolerance, 10 pF load capacitance, and 100 Ohm maximum ESR constraints.
