T1400N16H75VTXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：STD THYR/DIODEN DISC BG-T7526K-1
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：-
- Number of SCRs, Diodes：-
- Voltage - Off State：-
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Voltage - Gate Trigger (Vgt) (Max)：-
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

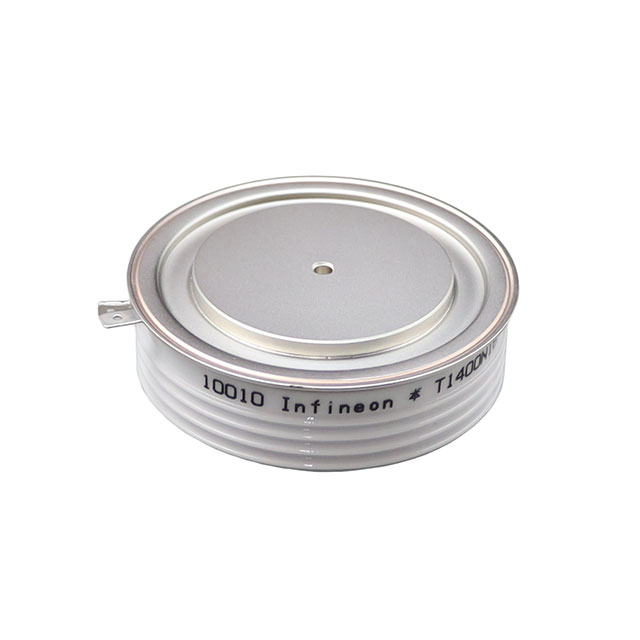

The Infineon T1400N16H75VTXPSA1 is a phase control thyristor with a 1600V repetitive peak off-state and reverse voltage rating. It supports an average on-state current of 1410A at a case temperature of 85°C, with a maximum RMS on-state current of 2220A. The device withstands a surge current of 34000A for 10ms at 25°C. Key electrical parameters include a threshold voltage of 0.80V, a slope resistance of 0.21mΩ, and a maximum junction-to-case thermal resistance of 17.0K/kW under DC conditions. The component features a disc package with a 75mm diameter and requires a clamping force between 14kN and 26kN.
Feature Summary
- Provides full blocking capability at 50/60Hz across a wide operating temperature range
- Features high DC blocking stability and high surge current capability
- Utilizes an industrial standard pressure-contact package design
Applications
- Soft starters
- Medium voltage converters
- Rectifiers for drive applications
Procurement Notes
Verify the specific ordering suffix against official Infineon documentation to confirm exact mechanical and electrical configurations. Ensure that the procurement channel provides valid traceability and authenticity guarantees for power semiconductor components. Cross-reference the manufacturer part number with authorized distributor catalogs to validate technical specifications before finalizing orders.
Selection Notes
Select this component based on its 1600V voltage rating and 1410A average current capacity at 85°C. Evaluate the thermal management requirements using the specified junction-to-case thermal resistance values. Confirm that the application circuit can accommodate the required gate trigger characteristics and the necessary mechanical clamping force within the 14kN to 26kN range for reliable operation.
Part Context
This device belongs to the T14/T17 series of 1600V phase control thyristors from Infineon Technologies. These components are engineered for high-power grid-connected applications requiring robust performance under demanding electrical and thermal conditions. The series is characterized by its ability to handle significant surge currents while maintaining stable blocking capabilities in industrial environments.
Replacement Considerations
Consult official Infineon cross-reference guides or contact technical support for verified substitute part numbers. Do not assume functional equivalence with other manufacturers' devices without comprehensive validation of all electrical, thermal, and mechanical parameters.
