T145AH-2.4/4.9/5.X-S

Antennas RF Overview

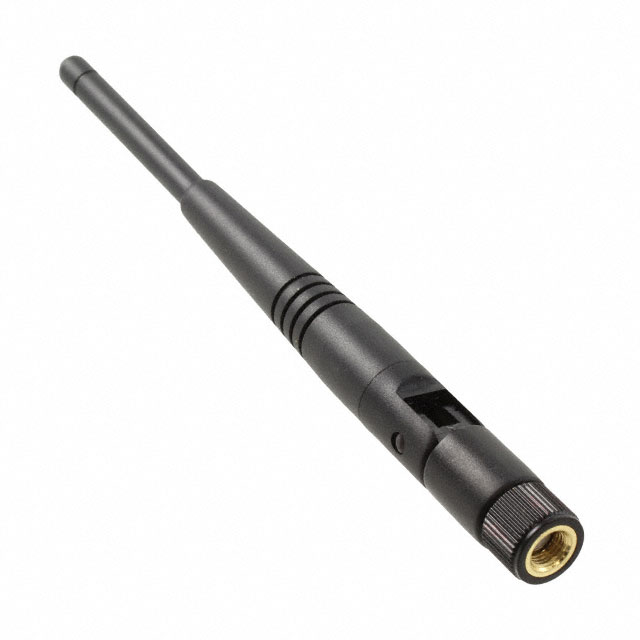

The T145AH-2.4/4.9/5.X-S is an active RF antenna manufactured by Nearson Inc., designed for multi-band wireless communication applications. It supports operation across the UHF (2GHz ~ 3GHz) and SHF (f > 4GHz) frequency groups, specifically targeting 2.4 GHz, 4.9 GHz, and 5.x GHz bands. The component features a whip tilt design with RP-SMA male termination and utilizes connector mount installation. This active antenna configuration integrates internal amplification to enhance signal reception and transmission capabilities within its specified dual-frequency operational range.

Antennas RF Feature Summary

• Supports simultaneous operation in UHF and SHF frequency ranges
• Features a whip tilt structural design for directional flexibility
• Integrates active components for signal enhancement

Antennas RF Applications

• Dual-band wireless communication systems
• UHF and SHF radio frequency infrastructure
• Multi-standard IoT connectivity modules

Antennas RF Procurement Notes

Verify that the specific suffix 'S' corresponds to the required RP-SMA male termination and packaging configuration. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the active nature of the antenna aligns with the power supply constraints of the host system design.

Antennas RF Selection Notes

Select this component when both 2.4 GHz and 4.9/5.x GHz coverage are required within a single unit. The active design necessitates appropriate bias voltage provision. Compare against passive alternatives if power consumption is a critical constraint, noting that active antennas provide gain but require continuous power.

Antennas RF Part Context

This part belongs to the Nearson T145 series of RF antennas. The series includes variants such as the T145TR-2.4/4.9/5.X-S, which may differ in termination or mounting style. The T145AH variant specifically denotes the active whip tilt configuration with RP-SMA connectivity, distinguishing it from other family members.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RP-SMA connectors before considering alternative active multi-band antennas from other manufacturers.
