T145TR-2.4/4.9/5.X-S

Antennas RF Overview

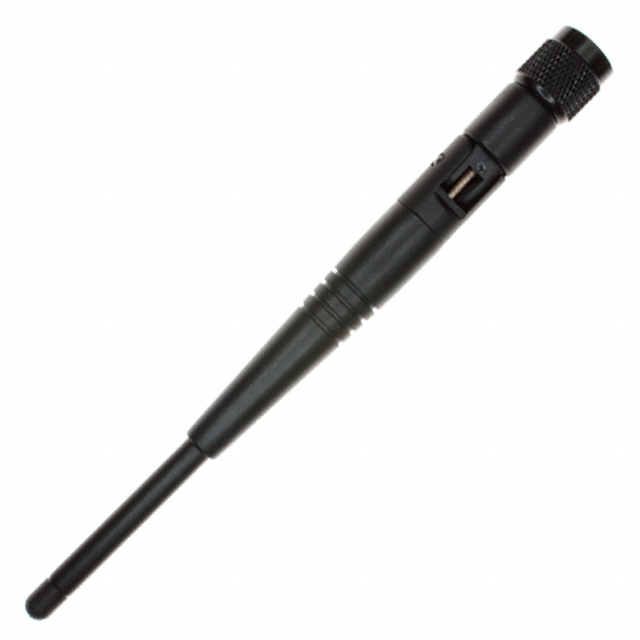

The T145TR-2.4/4.9/5.X-S is a whip-style RF antenna manufactured by Nearson Inc., designed for operation in the UHF and SHF frequency bands, specifically covering 2.4 GHz, 4.9 GHz, and 5.x GHz ranges. It features a tilt-adjustable rubber duck design with a swivel mechanism to optimize signal orientation. The component utilizes an RP-TNC male connector for mounting, facilitating secure attachment to compatible RF systems. This configuration supports general RF applications requiring flexible directional control.

Antennas RF Feature Summary

• Tilt-adjustable rubber duck whip design for flexible signal orientation
• Swivel mechanism allows dynamic positioning of the antenna element
• RP-TNC male connector provides secure mounting interface
• Multi-band capability supporting 2.4 GHz, 4.9 GHz, and 5.x GHz frequencies

Antennas RF Applications

• General RF communication systems requiring multi-band support
• Wireless network infrastructure utilizing UHF and SHF bands
• Portable or mobile RF equipment needing adjustable antenna placement

Antennas RF Procurement Notes

Verify the specific frequency band suffix (2.4/4.9/5.X) matches your system requirements, as variants exist within the T145 series. Confirm the RP-TNC male connector type aligns with your device's port. Request official datasheets from Nearson Inc. or authorized distributors to validate electrical parameters and mechanical dimensions before integration. Ensure compliance with regional radio frequency regulations for the intended operating bands.

Antennas RF Selection Notes

Select this model when flexible antenna positioning is critical for link quality. The tilt and swivel features address alignment challenges in constrained spaces. Compare against fixed-mount alternatives if environmental stability is prioritized over adjustability. Ensure the host equipment supports the RP-TNC interface without adapters to minimize insertion loss. Validate that the target application operates within the specified UHF and SHF frequency groups.

Antennas RF Part Context

This component belongs to Nearson Inc.'s T145 series of RF antennas, which includes variants like T131AH and T145AH. These parts share similar form factors but differ in connector types or mounting styles. The T145TR variant specifically denotes the tilt-adjustable feature set. It is categorized under RF Antennas, distinct from passive components or active modules, serving as a passive radiating element for wireless transmission and reception.

Antennas RF Replacement Considerations

Direct substitutes include other Nearson T145 series models such as T145AH-2.4/4.9/5.X-S, provided the connector type compatibility is verified. Cross-reference mechanical dimensions and impedance specifications to ensure seamless integration. Generic RP-TNC whip antennas may serve as functional replacements if performance metrics align, though brand-specific tuning may affect efficiency.
