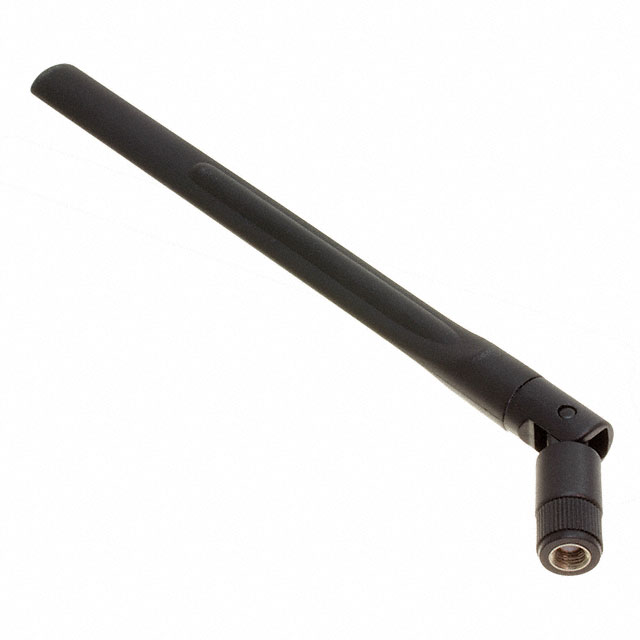

T1561AH-2.4/5.X-S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is FLEXABLE WHIP ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T1561AH-2.4/5.X-S
- Description：FLEXABLE WHIP ANTENNA FOR 2.4GHZ
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4417GHz, 5.5GHz
- Frequency Range：2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Whip, Tilt
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：RP-SMA
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.795" (198.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for T1561AH-2.4/5.X-S
Antennas RF Overview
The T1561AH-2.4/5.X-S is a flexible whip antenna manufactured by Nearson Inc., designed for operation at the 2.4 GHz frequency band. This component serves as an RF antenna solution, specifically categorized under flexible whip antennas. The product description identifies it as a flexible whip antenna intended for 2.4 GHz applications.
Antennas RF Feature Summary
- Flexible whip construction
- Designed for 2.4 GHz frequency band
Antennas RF Applications
- RF communication systems requiring 2.4 GHz connectivity
Antennas RF Procurement Notes
Verify the manufacturer part number T1561AH-2.4/5.X-S against official Nearson Inc. documentation to confirm specifications. Ensure compatibility with 2.4 GHz operational requirements. Check for RoHS compliance status if required by your project standards. Confirm connector type and mounting style from the official datasheet before procurement.
Antennas RF Selection Notes
Select this component when a flexible whip form factor is required for 2.4 GHz RF applications. Consider the physical flexibility and size constraints of the installation environment. Verify that the 2.4 GHz band aligns with the system's frequency requirements. Consult the official datasheet for mechanical dimensions and electrical characteristics.
Antennas RF Part Context
This part belongs to the Nearson Inc. RF Antenna product line. It is classified as a flexible whip antenna. The model number indicates specific designations within the manufacturer's catalog for 2.4 GHz operations. Related parts may include other frequencies or connector types in the same series.
Antennas RF Replacement Considerations
Consult official Nearson Inc. documentation for verified substitute part numbers. Ensure any replacement maintains the 2.4 GHz frequency specification and flexible whip form factor. Cross-reference connector types and mounting styles to ensure mechanical and electrical compatibility.
