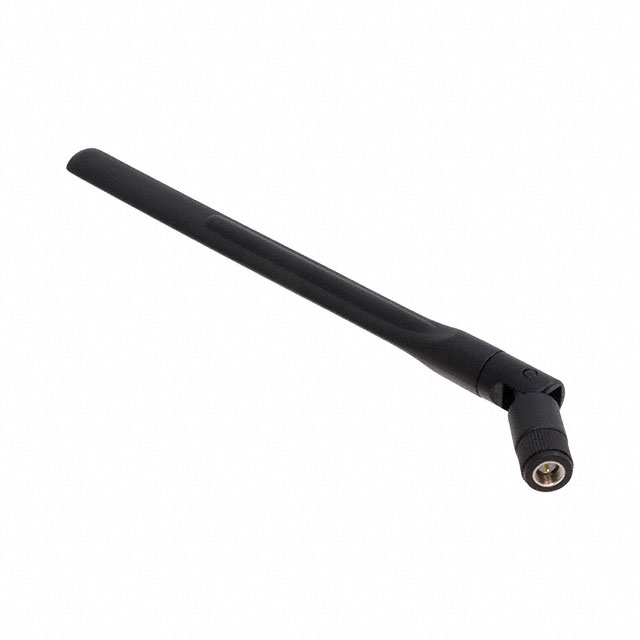

T1561AM-2.4/5.X-S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is FLEXABLE WHIP ANTENNA FOR 2.4GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T1561AM-2.4/5.X-S
- Description：FLEXABLE WHIP ANTENNA FOR 2.4GHZ
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 5.5GHz
- Frequency Range：2.4GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Whip, Tilt
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：SMA
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.795" (198.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for T1561AM-2.4/5.X-S
Antennas RF Overview
The T1561AM-2.4/5.X-S is a flexible whip antenna designed for dual-band wireless applications operating at 2.4GHz and 5.5GHz. It supports frequency ranges of 2.4GHz and 5.15GHz to 5.85GHz with a gain of 5dBi. The component features an SMA connector mount type and has a maximum height of 7.795 inches (198.00mm). It is RoHS compliant and classified under RF antennas.
Antennas RF Feature Summary
- Flexible whip design for versatile mounting
- Dual-band operation supporting 2.4GHz and 5.15-5.85GHz frequencies
- SMA connector interface for secure attachment
Antennas RF Applications
- Wireless LAN devices
- Bluetooth enabled equipment
- Industrial IoT sensors
Antennas RF Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required frequency bands and connector types. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into production lines to avoid supply chain discrepancies.
Antennas RF Selection Notes
Select this model when a compact, flexible antenna solution is required for dual-band 2.4GHz and 5GHz operations. Ensure the application environment accommodates the specified 198.00mm height and SMA connector interface. Evaluate mechanical flexibility needs against standard rigid whip alternatives for optimal signal performance in constrained spaces.
Antennas RF Part Context
This part belongs to Nearson Inc.'s T1561 series of RF antennas. It shares the base product number T1561 with related models such as the T1551AH-2.4/5.X-S, indicating a common family architecture. The specific suffix defines the flexible whip configuration and dual-band capabilities distinct from other variants in the lineup.
Antennas RF Replacement Considerations
The T1551AH-2.4/5.X-S is a documented substitute within the same manufacturer's portfolio. Verify electrical specifications and mechanical dimensions before substitution to ensure functional equivalence in the target assembly.
