Product Detailed Parameters
- Description：THYRISTOR TO220AB TUBE 50PCS
- Series：-
- Mfr：Diodes Incorporated
- Package：Tube
- Voltage - Off State：-
- Voltage - Gate Trigger (Vgt) (Max)：-
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- SCR Type：-
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - On State (Vtm) (Max)：-
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Off State (Max)：-
Download product information
Overview

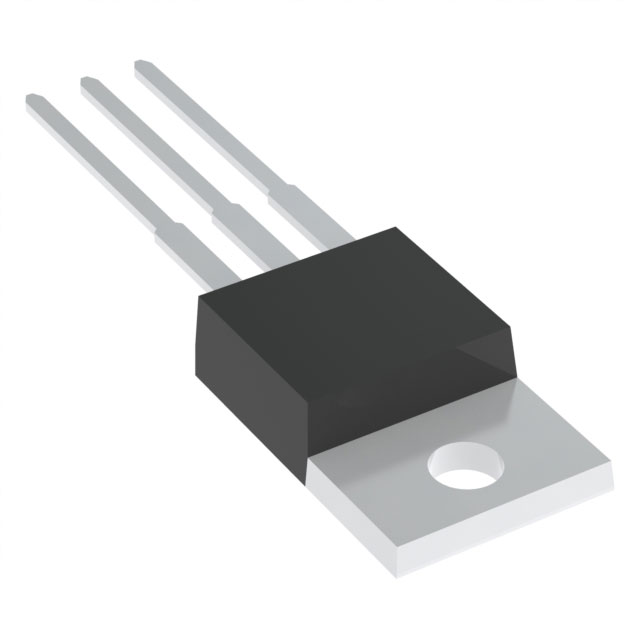

The T16M25F600B is a bidirectional triac manufactured by Diodes Incorporated, designed for AC power control applications. It features a rated repetitive off-state voltage (VDRM) of 600 V and an on-state RMS current (IT(RMS)) of 16 A. The device operates within a junction temperature range of -40 °C to +125 °C. Key electrical characteristics include a maximum holding current (Ih) of 50 mA and a gate trigger current (Igt) of 25 mA at a specified gate trigger voltage (Vgt). It is housed in a TO-220AB package with a through-hole mounting style.
Feature Summary
- Bidirectional switching capability for alternating current circuits
- Robust thermal performance suitable for high-power industrial environments
- High surge current handling capacity for inductive load protection
Applications
- Industrial motor speed control systems
- Solid-state relay modules
- Lighting dimmer circuits
Procurement Notes
Verify the specific suffix 'F' against official Diodes Incorporated documentation to confirm exact binning or testing criteria, as distributor listings may not detail suffix variations. Ensure the TO-220AB package matches the target PCB footprint and that the 600 V rating aligns with the system's peak line voltage requirements. Cross-reference the datasheet for precise thermal resistance values during integration.
Selection Notes
Select this component when a 16 A continuous current rating and 600 V blocking voltage are required for AC switching. Compare the 25 mA gate trigger current against the driving circuit's output capability to ensure reliable turn-on. Evaluate the TO-220AB package for adequate heatsinking solutions given the 125 °C maximum junction temperature limit.
Part Context
This part belongs to the T16M series of high-current triacs from Diodes Incorporated. The series is engineered for robust performance in demanding power electronics applications. The T16M25F600B specifically targets scenarios requiring moderate voltage blocking with significant current handling capabilities in a standard through-hole package.
Replacement Considerations
Consult official substitution guides for equivalent 16 A, 600 V triacs in TO-220AB packages. Verify pinout compatibility and thermal characteristics before replacing with parts from other manufacturers.
