Product Detailed Parameters
- Description：THYRISTOR TO92 T&R 2K
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Off State：-
- Voltage - Gate Trigger (Vgt) (Max)：-
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- SCR Type：-
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - On State (Vtm) (Max)：-
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Off State (Max)：-
Download product information
Overview

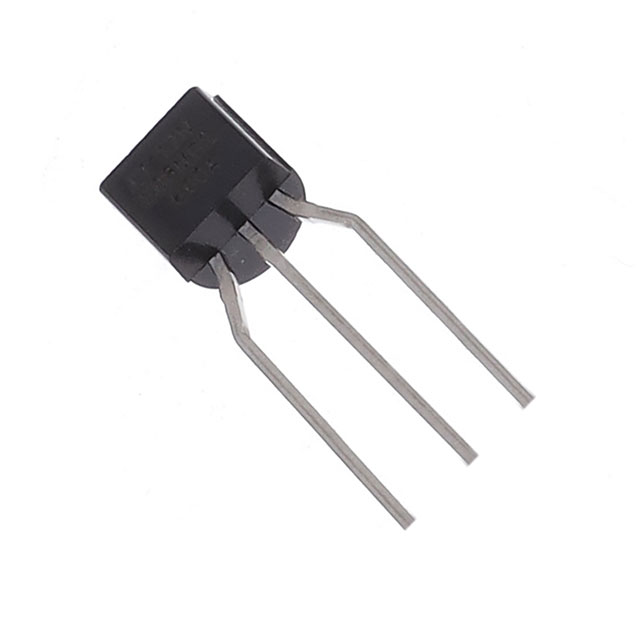

The T1M5F600A is a silicon bidirectional thyristor (TRIAC) from the T1M5F-A series manufactured by Diodes Incorporated. It features a one-piece injection-molded package in TO-92 (TO-226AA) configuration with sensitive gate triggering across all four quadrants. The device supports a peak repetitive off-state voltage of 600 V and an on-state RMS current of 1.0 A at a case temperature of 50°C. It withstands a peak non-repetitive surge current of 10.0 A and operates within a junction temperature range of -40°C to +110°C.
Feature Summary
- Sensitive gate triggering capability for all four trigger modes
- One-piece injection-molded package construction
- Diffused and glassivated junctions for parameter uniformity
- Improved noise immunity with dv/dt rating of 20 V/µs
Applications
- Lighting control circuits
- Motor speed control applications
- Solid state relay designs
Procurement Notes
Verify component authenticity through authorized distribution channels. Confirm datasheet revision status prior to implementation. Ensure storage conditions remain within specified limits to maintain device integrity. Validate pin assignment compatibility during PCB layout integration.
Selection Notes
Select this component when a 600V blocking voltage is required alongside 1A continuous current handling. Consider thermal resistance values for heat dissipation planning. Evaluate gate trigger characteristics against driver circuit capabilities. Verify operating temperature requirements align with the specified junction range.
Part Context
This TRIAC belongs to the T1M5F-A series, which includes variants with different voltage ratings such as the T1M5F400A. The series utilizes a standardized TO-92 package format. All devices in this family share similar electrical characteristics and packaging dimensions while differing primarily in their maximum blocking voltage specifications.
Replacement Considerations
Compatible substitutes include other 600V sensitive gate TRIACs in TO-92 packages. Verify equivalent current ratings and thermal performance before substitution. Check pinout compatibility to ensure direct replacement feasibility without circuit redesign.
FAQ
What is the critical rate of rise of off-state voltage (dv/dt)?
The minimum dv/dt rating is 20 V/µs at a junction temperature of 110°C.
How many trigger modes does the T1M5F600A support?
It supports sensitive gate triggering in all four quadrants for various trigger source combinations.
What is the maximum lead temperature for soldering?
The maximum lead temperature is 260°C for a duration of 10 seconds at 1/8 inch from the case.
