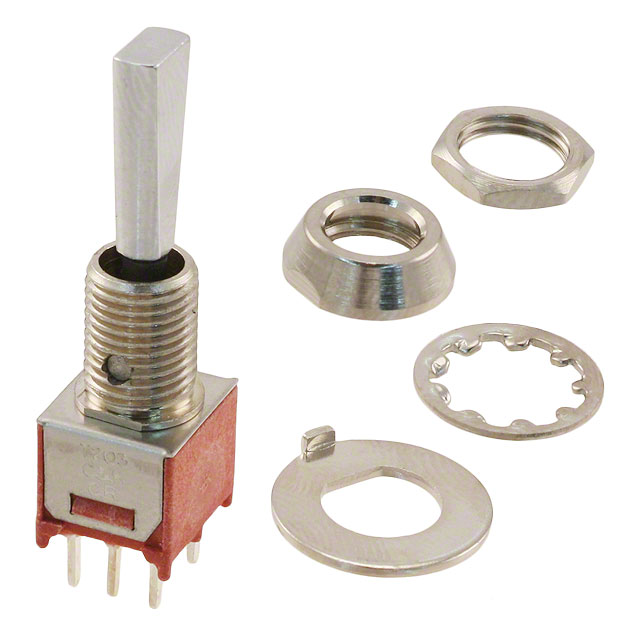

T203P3TCQE is listed in the Toggle Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TOGGLE DPDT 2A 120V. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for T203P3TCQE
- Description：SWITCH TOGGLE DPDT 2A 120V
- Series：T
- Mfr：C&K
- Package：Bulk
- Mounting Type：Panel Mount
- Circuit：DPDT
- Switch Function：On-Off-On
- Current Rating (Amps)：2A (AC/DC)
- Voltage Rating - AC：120 V
- Voltage Rating - DC：28 V
- Actuator Type：Flat Anti-Rotation
- Actuator Length：12.45mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：PC Pin
- Panel Cutout Dimensions：Circular - 6.35mm Dia
- Bushing Thread：1/4-40
- Ingress Protection：-
- Features：Epoxy Sealed Terminals
- Operating Temperature：-30°C ~ 85°C
Toggle Switches datasheet and documents for T203P3TCQE
