T20F169C3

Field Programmable Gate Array Overview

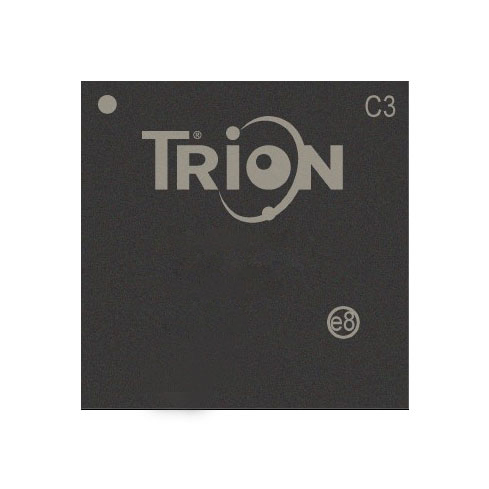

The Efinix T20F169C3 is a Trion FPGA featuring 20,000 logic elements and 48 DSP slices. It includes 1.5 Mbits of embedded SRAM and supports up to 270 I/O pins with a maximum data rate of 622 Mbps on LVDS interfaces. The device operates at core voltages of 1.2V and 1.8V/2.5V, housed in a 169-pin BGA package.

Field Programmable Gate Array Feature Summary

• Supports high-speed serial communication via integrated transceivers
• Includes dedicated hardware for digital signal processing tasks
• Provides flexible I/O standards for mixed-signal connectivity

Field Programmable Gate Array Applications

• Industrial automation control systems
• Medical imaging equipment front-ends
• Telecommunications infrastructure modules

Field Programmable Gate Array Procurement Notes

Verify the specific suffix C3 against official Efinix documentation to confirm pinout and thermal specifications. Ensure compatibility with required programming tools and license agreements before procurement.

Field Programmable Gate Array Selection Notes

Compare resource utilization against project requirements for logic cells and memory bits. Evaluate power consumption profiles under typical operating conditions to ensure thermal management meets system constraints.

Field Programmable Gate Array Part Context

Part of the Trion family designed for cost-sensitive applications requiring moderate performance. Offers a balance between programmability and fixed-function efficiency for embedded control tasks.

Field Programmable Gate Array Replacement Considerations

Check Efinix migration guides for direct pin-compatible upgrades within the Trion series. Verify that alternative devices support identical interface speeds and voltage levels.
