T20F256C3

Field Programmable Gate Array Overview

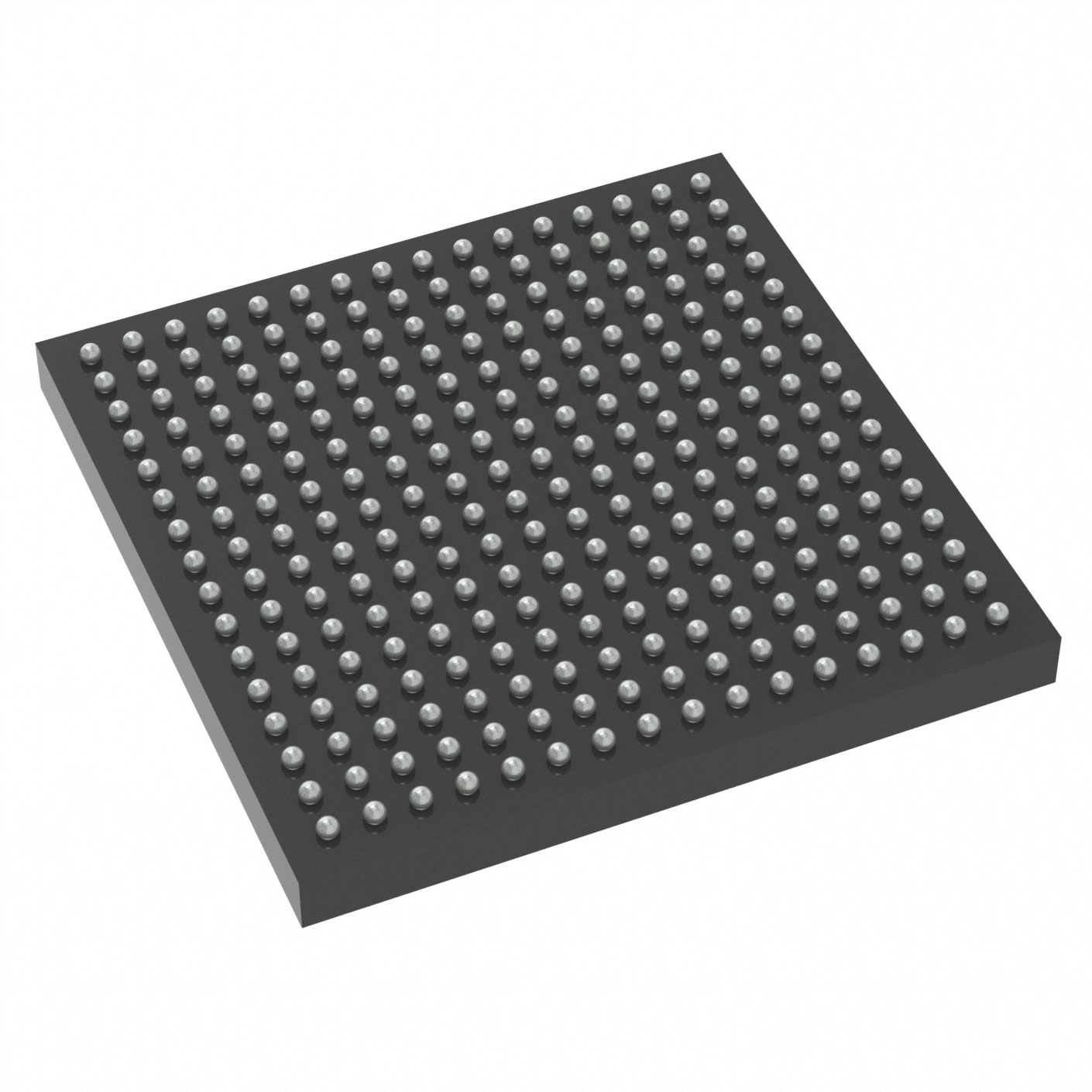

The T20F256C3 is a Trion series Field Programmable Gate Array (FPGA) manufactured by Efinix, Inc. It features 19,728 logic elements and 1,069,548 total RAM bits. The device provides 195 input/output pins and operates within a supply voltage range of 1.15V to 1.25V. It is housed in a 256-TFBGA package with dimensions of 13x13 mm. The component supports surface mount mounting and functions at junction temperatures between 0°C and 85°C.

Field Programmable Gate Array Feature Summary

• Trion architecture providing embedded FPGA capabilities with significant on-chip memory resources
• High-density I/O configuration supporting complex interface requirements
• Low-voltage operation optimized for power efficiency in portable or dense designs

Field Programmable Gate Array Applications

• Industrial control systems requiring programmable logic
• Consumer electronics with space-constrained form factors
• Communication infrastructure interfaces

Field Programmable Gate Array Procurement Notes

Verify the specific suffix C3 against official Efinix documentation to confirm temperature grade and package variant. Ensure compatibility with design tools supporting the Trion series. Check RoHS3 compliance status for regulatory adherence. Confirm moisture sensitivity level handling procedures during assembly. Validate supplier authorization to avoid counterfeit components.

Field Programmable Gate Array Selection Notes

Compare logic element count and RAM capacity against project requirements to ensure sufficient resources. Evaluate the 256-TFBGA package size for board space constraints. Consider the operating temperature range for environmental suitability. Assess the I/O count for peripheral connectivity needs. Verify voltage levels match system power rails.

Field Programmable Gate Array Part Context

This component belongs to the Trion family of FPGAs from Efinix. The base product number is T20F256. The T20 designation indicates the specific density tier within the Trion lineup. The C3 suffix typically denotes commercial temperature range and specific packaging attributes as defined by the manufacturer.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements are not publicly documented for this specific part number. Designers should consult Efinix for recommended equivalents within the Trion series or evaluate cross-platform migration options if architectural differences are acceptable.
