T2102AH-2.4/4.9/5.X-S

Antennas RF Overview

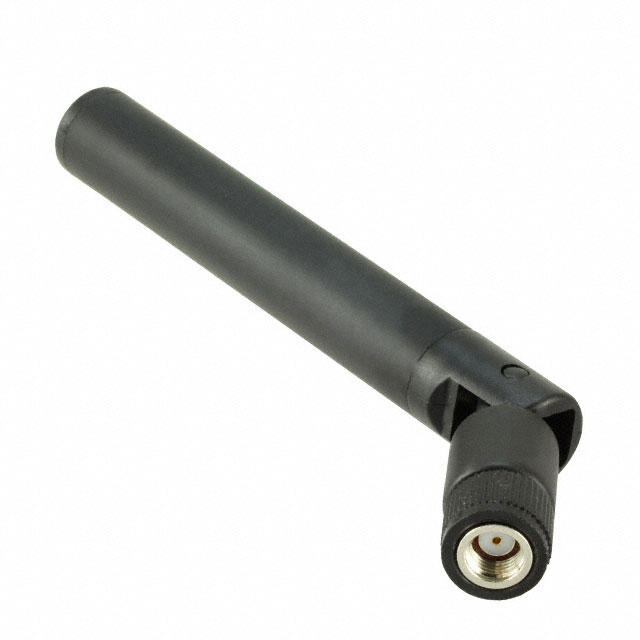

The T2102AH-2.4/4.9/5.X-S is a dual-band whip antenna manufactured by Nearson Inc., designed for RF applications requiring tilt functionality. It operates across two distinct frequency ranges: 2.4GHz to 2.483.5GHz and 4.9GHz to 5.9GHz, with center frequencies at 2.4GHz and 5.4GHz respectively. The component features an RP-SMA male connector mount configuration and achieves an IP67 rating for environmental protection. Physical dimensions include a length of 4.488 inches (114.00mm) and a gain of 2dBi. It supports UHF and SHF bands.

Antennas RF Feature Summary

• Dual-band operation covering 2.4GHz and 5.4GHz centers
• Tilt whip design with RP-SMA male connector
• IP67 rated environmental sealing

Antennas RF Applications

• WiFi network infrastructure
• ISM band communications
• Licensed spectrum systems

Antennas RF Procurement Notes

Verify the specific connector type and mounting orientation against system requirements before ordering. Confirm that the IP67 rating meets the installation environment's ingress protection needs. Ensure the RP-SMA male interface is compatible with the host device's female port. Check for RoHS compliance if regulatory adherence is required for the deployment region.

Antennas RF Selection Notes

Select this model when dual-band coverage at 2.4GHz and 5.4GHz is necessary in a single unit. The tilt feature allows for directional adjustment without mechanical repositioning of the base. Consider the 2dBi gain level for range requirements. The whip form factor suits vertical mounting scenarios where space constraints limit larger array antennas.

Antennas RF Part Context

This part belongs to Nearson Inc.'s RF antenna lineup, specifically within the whip and tilt category. It is engineered for robust performance in wireless communication setups. The designation indicates its dual-frequency capability and standard connector interface. Similar models may vary in frequency ranges or physical dimensions.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and cable assemblies when sourcing alternatives. Ensure any replacement maintains the RP-SMA male interface and IP67 rating if environmental sealing is critical.
