T2M-115-01-S-D-TH-WT

Headers, Male Pins Overview

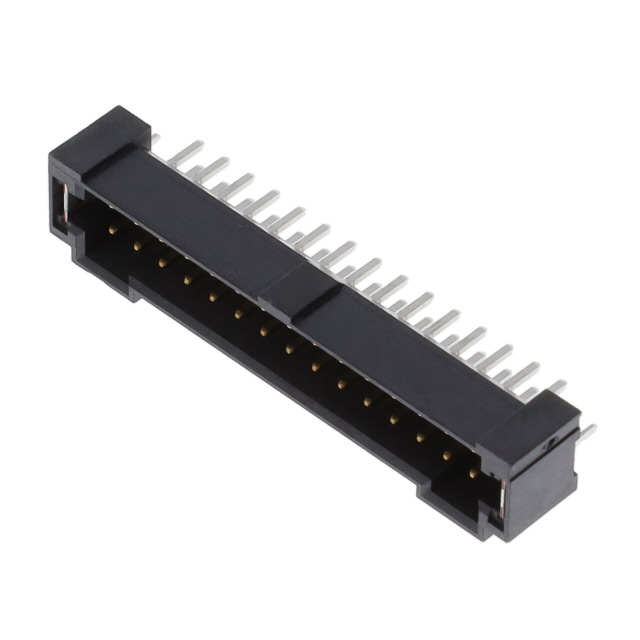

The T2M-115-01-S-D-TH-WT is a vertical header connector from the Samtec Tiger Eye™ T2M series, designed for board-to-board or cable applications. It features a 2.00 mm (0.079 in) pitch with 50 positions arranged in two rows. The connector utilizes through-hole termination and includes a push-pull locking mechanism. Contact materials consist of phosphor bronze with gold plating on the mating surfaces and tin plating on the posts. The housing is constructed from black liquid crystal polymer (LCP), rated for operation between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Utilizes the Tiger Eye multi-finger contact system for reliable signal transmission
• Features a four-wall shielded shroud for enhanced environmental protection
• Incorporates a push-pull locking style to ensure secure mechanical retention
• Designed for high-reliability discrete wire connections

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board assemblies
• High-reliability discrete wire headers

Headers, Male Pins Procurement Notes

Verify that the specific suffixes match the required termination type and plating thickness. Confirm the pin count corresponds to the exact position requirement. Ensure the operating temperature range aligns with the application environment. Check RoHS compliance status if restricted substances are a concern. Validate the insulation material properties against chemical exposure risks.

Headers, Male Pins Selection Notes

Select this component when a 2.00 mm pitch is required for robust connectivity. Consider the push-pull mechanism if frequent mating cycles are anticipated. Evaluate the need for shielding against electromagnetic interference. Assess the thermal requirements to ensure the LCP housing withstands peak temperatures. Compare current ratings against the total load of all active contacts.

Headers, Male Pins Part Context

This part belongs to the T2M series within the broader Tiger Eye™ product family. The series offers both surface mount and through-hole options. It is engineered for rugged environments requiring high durability. The design supports both single and double row configurations. It pairs specifically with S2SD and S2SS cable components.

Headers, Male Pins Replacement Considerations

Direct substitutes include other T2M series variants with different pin counts or termination styles. Cross-series replacements may require adapter solutions due to pitch differences. Verify mechanical footprint compatibility before substituting with similar connectors.
