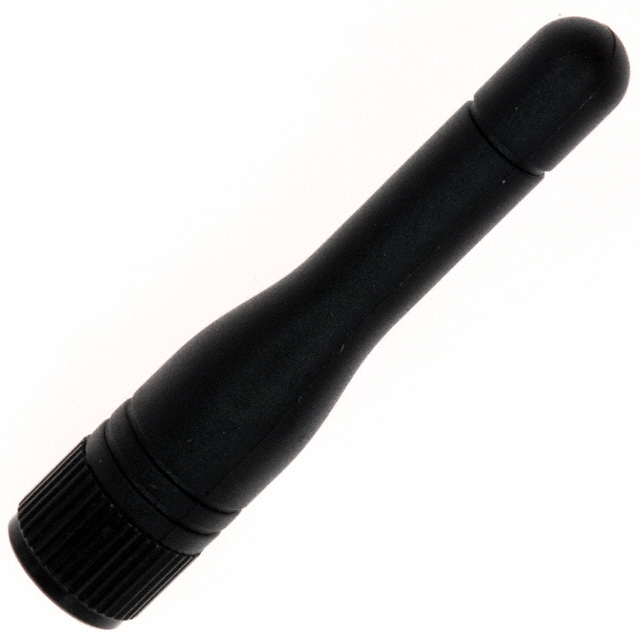

T321AM-GDP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 900MHZ/1.8GHZ WHIP STR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T321AM-GDP
- Description：RF ANT 900MHZ/1.8GHZ WHIP STR
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：900MHz, 1.8GHz, 1.9GHz
- Frequency Range：890MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
- Antenna Type：Whip, Straight
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.126" (54.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for T321AM-GDP
Antennas RF Overview
The T321AM-GDP is a tri-band whip-style RF antenna manufactured by Nearson Inc. It operates across UHF frequency groups, specifically covering 890MHz to 960MHz, 1.71GHz to 1.81GHz, and 1.85GHz to 1.95GHz. The component features a straight design with an SMA connector mount. It is classified as an active part within the RF Antennas product category.
Antennas RF Feature Summary
- Tri-band operational capability supporting multiple UHF frequency ranges
- Straight whip-style structural design for compact integration
- SMA connector interface for secure mounting
Antennas RF Applications
- Wireless communication systems requiring multi-band support
- UHF radio equipment integration
- RFID reader antenna assemblies
Antennas RF Procurement Notes
Verify the specific SMA connector gender and exact frequency band definitions against the official Nearson Inc. datasheet before procurement. Confirm RoHS compliance status and package type details directly with the manufacturer or authorized distributor to ensure alignment with project specifications.
Antennas RF Selection Notes
Select this component when a straight whip antenna is required for UHF applications spanning approximately 900MHz to 1.9GHz. Ensure the system interface matches the SMA connector type. Validate that the tri-band coverage aligns precisely with the target regulatory frequency allocations for the intended deployment region.
Antennas RF Part Context
This model belongs to the Nearson Inc. T321 series of RF antennas. It shares the whip-style form factor with variants like the T321AT-GDP but differs in specific frequency tuning and connector configuration. The series is designed for general-purpose wireless communication hardware.
Antennas RF Replacement Considerations
The T321AT-GDP is a related whip-style variant from Nearson Inc. Verify functional equivalence regarding frequency bands and connector gender before substitution. Cross-reference technical specifications to ensure compatibility with existing RF circuitry.
