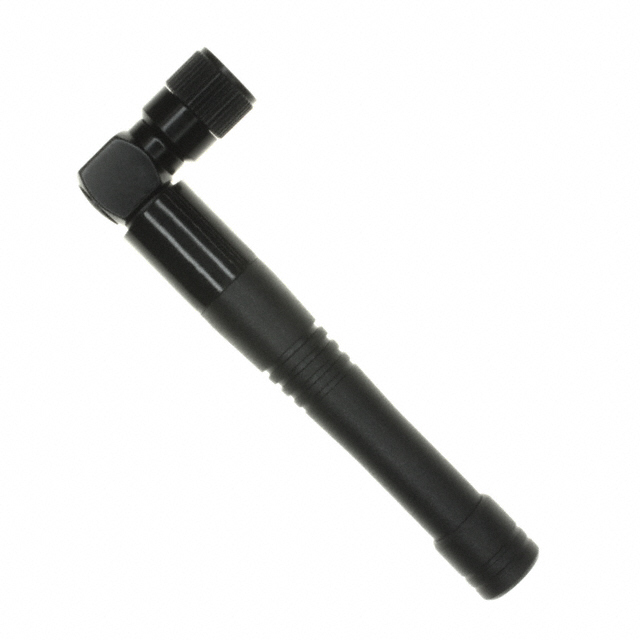

T324AM-GDP-R is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 925MHZ/1.8GHZ WHIP TILT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T324AM-GDP-R
- Description：RF ANT 925MHZ/1.8GHZ WHIP TILT
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：925MHz, 1.8GHz, 1.9GHz
- Frequency Range：890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz
- Antenna Type：Whip, Tilt
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.642" (92.50mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for T324AM-GDP-R
Antennas RF Overview
The T324AM-GDP-R is a whip-style RF antenna manufactured by Nearson Inc., designed for dual-band operation at 925 MHz and 1.8 GHz. This component features a tilt mechanism to adjust radiation patterns and utilizes an SMA male connector for secure mounting. It serves as a specialized solution for wireless communication systems requiring reliable signal transmission across these specific frequency ranges.
Antennas RF Feature Summary
- Dual-band capability supporting 925 MHz and 1.8 GHz frequencies
- Adjustable tilt mechanism for directional optimization
- SMA male connector interface for standard integration
Antennas RF Applications
- Wireless communication base stations
- Industrial telemetry systems
- Private land mobile radio networks
Antennas RF Procurement Notes
Verify the exact datasheet from Nearson Inc. to confirm mechanical dimensions and environmental ratings. Ensure compatibility with existing SMA connectors in the assembly. Check for any specific handling requirements during installation to maintain antenna integrity.
Antennas RF Selection Notes
Select this model when dual-band performance at 925 MHz and 1.8 GHz is required. The tilt feature allows for fine-tuning coverage areas. Confirm that the SMA male interface matches the host equipment port type before procurement.
Antennas RF Part Context
This part belongs to Nearson's line of whip antennas, specifically engineered for robust RF applications. It complements other models like the straight variant (T324AM-GDP) by offering adjustable orientation capabilities for enhanced system flexibility.
Antennas RF Replacement Considerations
The T324AM-GDP is a similar straight whip antenna from the same manufacturer but lacks the tilt adjustment feature. Verify if the fixed orientation of the substitute meets the spatial constraints of the application.
