T324AM-GDP

Antennas RF Overview

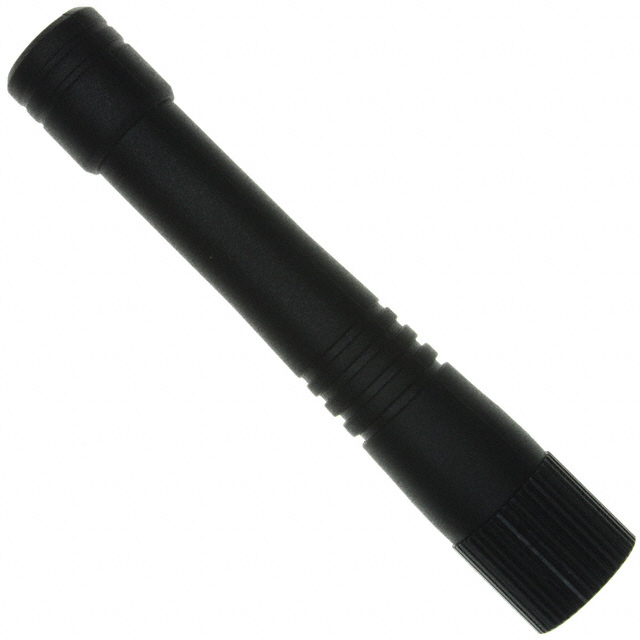

The T324AM-GDP is a whip-style RF antenna manufactured by Nearson Inc. It operates across two frequency bands: 925 MHz and 1.8 GHz. The component features a straight whip design with an SMA male connector for mounting. This configuration supports applications requiring dual-band performance in the UHF spectrum, specifically within the 300 MHz to 2 GHz range.

Antennas RF Feature Summary

• Dual-band operation supporting 925 MHz and 1.8 GHz frequencies
• Straight whip form factor for structural integration
• SMA male connector interface for secure mounting

Antennas RF Applications

• UHF communication systems operating in the 300 MHz to 1 GHz range
• Wireless devices utilizing the 1 GHz to 2 GHz frequency band
• RF equipment requiring a tilt or straight whip antenna solution

Antennas RF Procurement Notes

Verify the specific suffix requirements when ordering, as variations such as -DG or -R may indicate different physical configurations like straight versus tilt designs. Confirm the SMA male connector compatibility with your host device. Ensure the selected variant matches the required mechanical orientation for your assembly. Cross-reference the manufacturer part number with authorized distributor listings to confirm current availability and standard lead times before finalizing procurement plans.

Antennas RF Selection Notes

Select this model when a dual-band capability covering both sub-1 GHz and near 2 GHz operations is required. The straight whip design suits applications where space allows for vertical extension. Compare against similar models like T324AM-GDP-R if a tilted orientation is preferred for clearance reasons. Ensure the SMA interface aligns with existing cable assemblies or panel mounts.

Antennas RF Part Context

Nearson Inc. produces a series of RF antennas under the T324AM designation. Variants include the T324AM-GDP (straight) and T324AM-GDP-R (tilt). These components are categorized as UHF whip antennas designed for versatile mounting options. The product line addresses needs for reliable signal transmission in compact wireless modules.

Antennas RF Replacement Considerations

The T324AM-GDP-R serves as a functional alternative offering a tilted whip design instead of the straight configuration. Both share the same dual-band frequency specifications and SMA connector type. Verify mechanical fitment differences due to the angle change before substituting.
