T3710N06TOFVTXPSA1

Overview

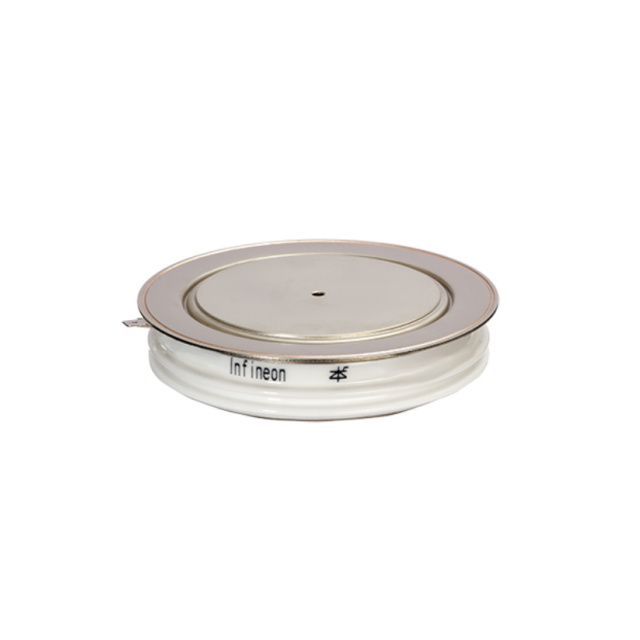

The T3710N06TOFVTXPSA1 is an electrically triggered phase control thyristor module manufactured by Infineon Technologies. It features a silicon construction with a 600 V repetitive peak off-state voltage rating and a continuous on-state current of 3710 A at 180 degrees electrical sine conduction. The device supports a non-repetitive surge current of 60,000 A over 10 ms and has a maximum junction temperature of 140 °C. Packaged in a ceramic disc housing with a 100 mm diameter and 26 mm height, it utilizes a clamp mounting style with a required force between 30 and 65 kN.

Feature Summary

• Electrically triggered phase control topology for high-power applications
• Robust ceramic sealed disc packaging providing mechanical protection and environmental resistance
• High surge current capability suitable for demanding industrial power systems

Applications

• Industrial motor drives
• HVDC transmission systems
• High-power rectifier bridges

Procurement Notes

Verify the complete part number including the XPSA1 suffix against official Infineon documentation to ensure correct configuration. Confirm that the specific ordering suffix matches the required product variant, as suffixes may indicate specific testing or packaging variations without altering core electrical function. Cross-reference the manufacturer's naming system documents to validate the component designation before procurement.

Selection Notes

Select this component based on the 600 V voltage rating and 3710 A current capacity requirements. Ensure the thermal management design accommodates the specified maximum junction temperature of 140 °C and the thermal resistance characteristics. Verify that the mechanical assembly can support the 100 mm disc dimensions and apply the necessary clamping force within the 30 to 65 kN range for reliable operation.

Part Context

This component belongs to Infineon's high-power thyristor disc series, designed for robust performance in severe operating conditions. The T3710N06TOFVTXPSA1 shares the standard 100 mm ceramic disc form factor common to this family, offering standardized mechanical integration for large-scale power electronics assemblies requiring high current handling capabilities.

Replacement Considerations

Direct substitutes include the T3710N06TOF VT. Verify compatibility with the XPSA1 suffix through official Infineon documentation to confirm if it represents a specific packaging or testing variation rather than a functional difference.
