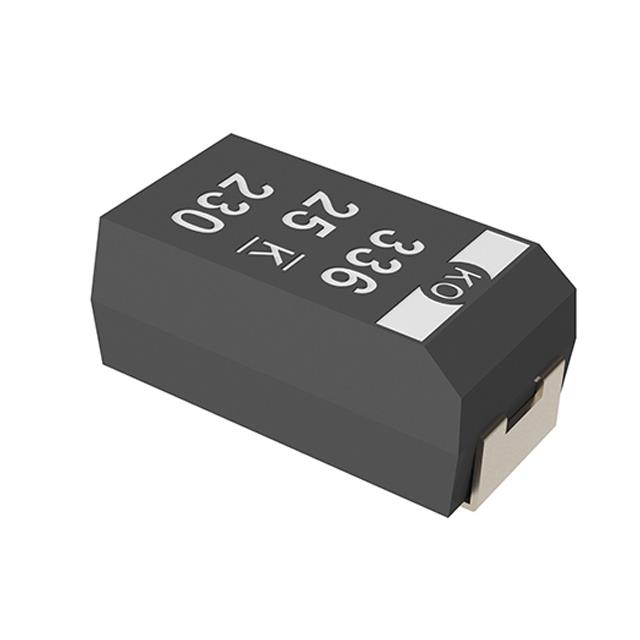

T521V107M016ATI050

T521V107M016ATI050 is listed in the Tantalum - Polymer Capacitors range at ChipApex. The manufacturer field lists KEMET. Its product description is CAP TANT POLY HV 100UF 16V. Review the specifications below when checking this part for your BOM.

Tantalum - Polymer Capacitors specifications for T521V107M016ATI050

• Description：CAP TANT POLY HV 100UF 16V
• Series：KO-CAP® T521
• Mfr：KEMET
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：16 V
• Type：Molded
• ESR (Equivalent Series Resistance)：50mOhm @ 100kHz
• Operating Temperature：-55°C ~ 125°C
• Lifetime @ Temp.：2000 Hrs @ 125°C
• Mounting Type：Surface Mount
• Package / Case：2917 (7343 Metric)
• Size / Dimension：0.287" L x 0.169" W (7.30mm x 4.30mm)
• Height - Seated (Max)：0.079" (2.00mm)
• Lead Spacing：-
• Manufacturer Size Code：V
• Ratings：-
• Features：General Purpose

Tantalum - Polymer Capacitors datasheet and documents for T521V107M016ATI050
