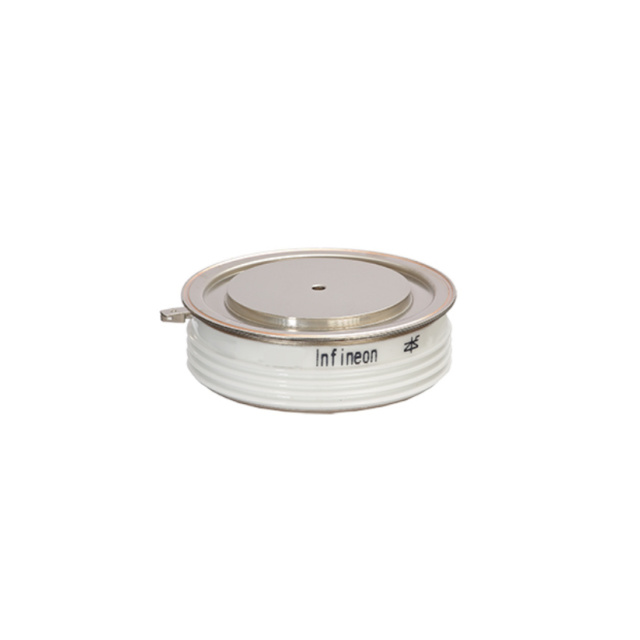

T570N65TOFXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：SCR MODULE 6500V 850A DO200AC
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：6.5 kV
- Current - On State (It (AV)) (Max)：760 A
- Current - On State (It (RMS)) (Max)：850 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：10500A @ 50Hz
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Clamp On
- Package / Case：TO-200AC
- Voltage - Gate Trigger (Vgt) (Max)：2.5 V
- Current - Gate Trigger (Igt) (Max)：350 mA
- Current - Hold (Ih) (Max)：350 mA
- Grade：-
- Qualification：-
Download product information
Overview
The T570N65TOFXPSA1 is a high-power silicon SCR module manufactured by Infineon Technologies. It belongs to the thyristor product category and utilizes standard Si technology. The component is designed for robust power control applications, featuring a specific package configuration suitable for industrial environments. Official documentation lists this part under Infineon's SCR modules lineup, with the alias SP001215982. The unit weight is specified as 550 g. RoHS compliance details are available in the manufacturer's specifications. This device serves as a critical element in phase control circuits requiring high current handling capabilities.
Feature Summary
- High power thyristor/diode module construction
- Silicon-based semiconductor technology
- Industrial-grade reliability design
Applications
- Phase control thyristor circuits
- High power industrial switching applications
Procurement Notes
Verify the exact ordering suffix and manufacturer part number against official Infineon datasheets before procurement. Confirm RoHS status and packaging details directly with authorized distributors. Ensure compatibility with existing thermal management systems due to the significant unit weight. Cross-reference the alias SP001215982 to avoid sourcing errors. Request original manufacturer documentation for final technical validation prior to purchase.
Selection Notes
Select this module based on its classification as a high-power SCR unit within the Infineon portfolio. Consider the 550 g weight for mechanical mounting and thermal dissipation requirements. Verify that the application demands align with the specific electrical characteristics of the T570N series. Consult the official data sheet for detailed voltage and current ratings not listed here. Ensure the chosen variant matches the required pinout and package dimensions for the target PCB or busbar assembly.
Part Context
This component is part of Infineon Technologies' broader portfolio of bipolar power semiconductors. It falls under the sub-category of thyristors, specifically designed for demanding power electronics applications. The T570N65TOFXPSA1 shares technological foundations with other high-power modules in the same family, emphasizing reliability and performance in silicon-based devices. It represents Infineon's engineering focus on robust power control solutions.
