T60405R6123X220

Overview

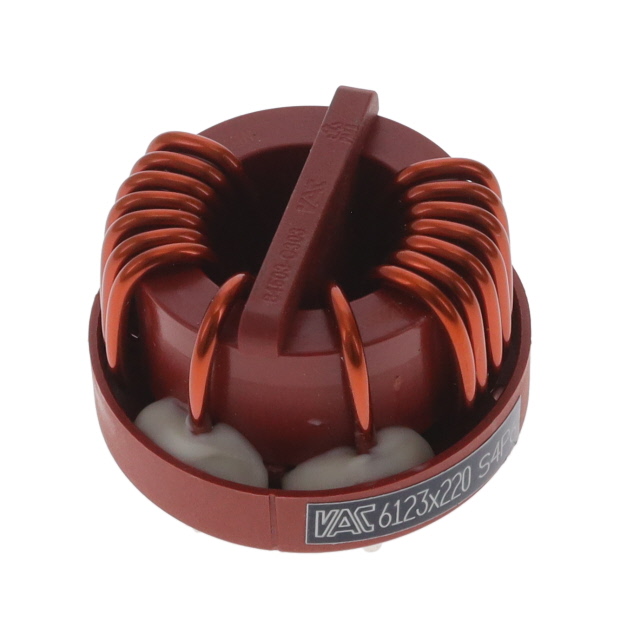

The VACUUMSCHMELZE T60405R6123X220 is a two-line common mode choke utilizing nanocrystalline core technology. It features an inductance of 470 uH and an impedance of 500 ohms, both measured at 100 kHz. The component supports a maximum DC current of 35 mA and employs through-hole mounting for PCB integration.

Feature Summary

• Utilizes nanocrystalline magnetic core material for high-performance filtering
• Designed as a two-line common mode choke for noise suppression
• Supports vertical through-hole PCB mounting configuration

Applications

• Electromagnetic interference (EMI) suppression in electronic circuits
• Signal integrity protection in data transmission lines
• Power supply input filtering for sensitive components

Procurement Notes

Verify the specific part number suffix against official Vacuumschmelze documentation to confirm exact electrical tolerances and pin configurations. Ensure compatibility with existing PCB footprint dimensions and thermal management requirements before finalizing procurement decisions.

Selection Notes

Select this component when nanocrystalline materials are required for superior low-frequency noise attenuation compared to standard ferrite cores. Evaluate the 35 mA current rating against circuit load requirements to ensure adequate performance margins under operational conditions.

Part Context

This component belongs to the T60405 series of nanocrystalline common mode chokes manufactured by Vacuumschmelze. The series utilizes VITROPERM alloy technology, offering high permeability and saturation characteristics suitable for compact EMI filter designs in industrial and consumer electronics.

Replacement Considerations

Cross-reference with other T60405 series variants such as T60405R6123X248 or T60405R6123X532 if different inductance values or current ratings are required. Verify mechanical footprint compatibility before substituting.
