Product Detailed Parameters
- Description：CMC 6.6MH 5A 2LN 6.5 KOHM TH
- Series：-
- Mfr：VACUUMSCHMELZE
- Package：Box
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 70°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.063" L x 0.669" W (27.00mm x 17.00mm)
- Height (Max)：1.114" (28.30mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：6.6 mH @ 100 kHz
- Impedance @ Frequency：6.5 kOhms @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

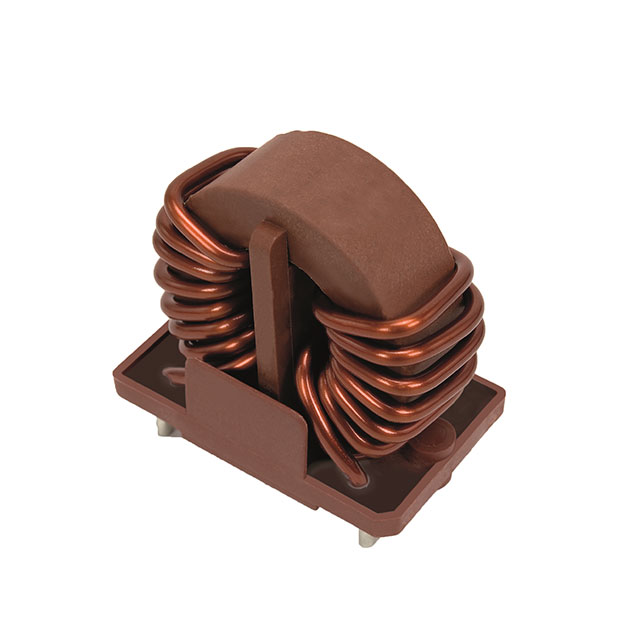

The T60405R6161X504 is a vertical mount common mode choke manufactured by Vacuumschmelze. It features through-hole termination and operates within a temperature range of -40°C to +130°C. Key electrical parameters include an inductance of 6.6 mH, an impedance of 6.5 kOhms at 100 kHz, and a maximum DC current rating of 20 mA. The component has a self-resonant frequency of 400 kHz and a length of 27 mm.
Feature Summary
- Utilizes nanocrystalline Vitroperm core material for high magnetic performance
- Designed for vertical mounting via through-hole technology
- Provides effective common mode noise suppression in single-phase circuits
Applications
- Single-phase power line filtering
- Electromagnetic interference suppression in electronic equipment
- Common mode noise reduction in AC/DC power supplies
Procurement Notes
Verify the specific suffix X504 against official Vacuumschmelze documentation to confirm exact tolerance and packaging specifications. Ensure compatibility with through-hole assembly processes and verify that the 20 mA current rating meets the application requirements before procurement.
Selection Notes
Select this component when low leakage inductance and high common mode impedance are required for single-phase applications. The 20 mA current limit necessitates careful evaluation of the operating current to prevent saturation. Verify thermal management capabilities given the -40°C to +130°C operating range.
Part Context
This part belongs to the T60405 series of common mode chokes from Vacuumschmelze. The series utilizes nanocrystalline materials known for superior magnetic properties compared to traditional ferrites. These components are designed for compact designs requiring high efficiency in noise suppression.
Replacement Considerations
Consult official Vacuumschmelze cross-reference guides for verified substitutes. Ensure any replacement matches the 6.6 mH inductance, 6.5 kOhm impedance, and 20 mA current rating. Verify mechanical dimensions and pin configuration compatibility.
