Product Detailed Parameters
- Description：CMC 22A TH
- Series：-
- Mfr：VACUUMSCHMELZE
- Package：Box
- Filter Type：-
- Number of Lines：-
- Current Rating (Max)：22A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

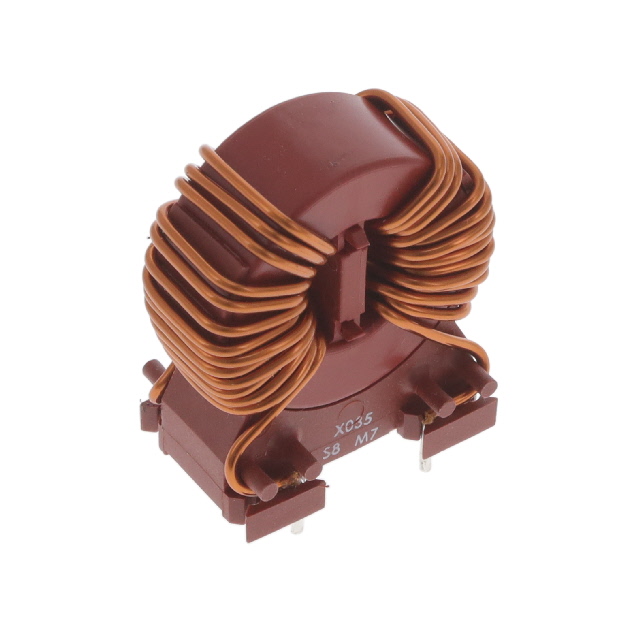

The T60405R6166X035 is a current-compensated common mode choke manufactured by Vacuumschmelze. It utilizes nanocrystalline VITROPERM material for high-performance electromagnetic interference suppression. The component features through-hole mounting with vertical orientation and four pins. Key electrical specifications include a rated current of 22 A, an inductance of 2.96 mH at 100 kHz, and an impedance of 3.15 kOhms at 100 kHz. It operates within a temperature range of -40°C to +130°C.
Feature Summary
- Utilizes nanocrystalline VITROPERM core material for superior magnetic properties
- Designed as a current-compensated filter for effective noise reduction
- Supports vertical through-hole PCB mounting for secure installation
Applications
- Industrial power supply filtering
- Electromagnetic interference suppression in electronic equipment
- Common mode noise cancellation in AC/DC conversion circuits
Procurement Notes
Verify the exact part number T60405R6166X035 against official Vacuumschmelze documentation to confirm specifications. Ensure compatibility with required current ratings and mounting styles. Check for RoHS compliance status if environmental regulations apply. Confirm lead times and availability directly with authorized distributors or the manufacturer.
Selection Notes
Select this component when high current handling up to 22 A is required alongside significant common mode noise attenuation. The nanocrystalline core offers advantages over traditional ferrites in specific frequency ranges. Consider the vertical package dimensions for board space constraints. Verify that the operating temperature range meets the application's thermal requirements.
Part Context
This component belongs to the T60405 series of common mode chokes from Vacuumschmelze. The series is characterized by the use of nanocrystalline materials, providing high saturation flux density and low core losses. These chokes are designed for robust performance in demanding industrial and commercial environments where reliable EMI suppression is critical.
Replacement Considerations
Publicly confirmed substitute part numbers for T60405R6166X035 were not found in the provided source data. Consult Vacuumschmelze technical support for verified alternatives with matching electrical and mechanical characteristics.
