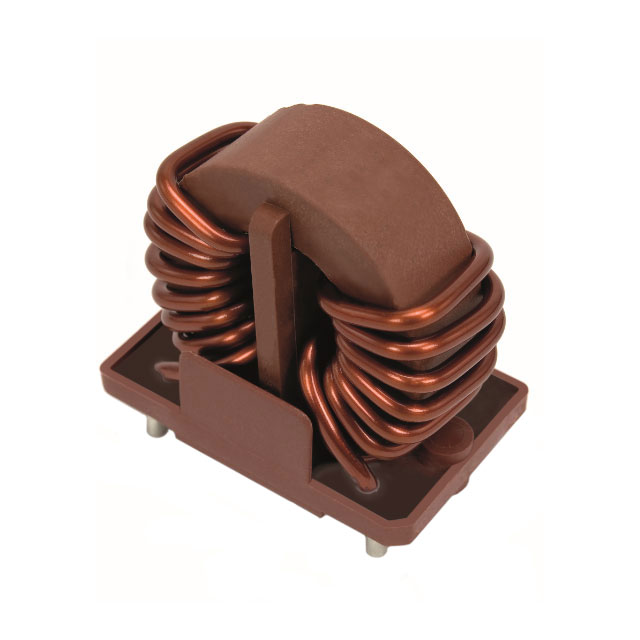

T60405R6166X039

$7.47

Description：CMC 750UH 18A 2LN 830 OHM TH
Series：-
Mfr：VACUUMSCHMELZE
Package：Box

SKU:35120712ad52 Category: Common Mode Chokes Brand: VACUUMSCHMELZE

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 750UH 18A 2LN 830 OHM TH
Series：-
Mfr：VACUUMSCHMELZE
Package：Box
Filter Type：-
Number of Lines：2
Current Rating (Max)：18A
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 0.827" W (36.00mm x 21.00mm)
Height (Max)：1.508" (38.30mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：750 µH @ 100 kHz
Impedance @ Frequency：830 Ohms @ 100 kHz
Qualification：-
Grade：-

Download product information

T60405R6166X039

Overview

The VACUUMSCHMELZE T60405R6166X039 is a nanocrystalline common mode choke from the Vitroperm series, designed for horizontal mounting. It features an inductance of 700 uH and supports a maximum DC current of 16 A. The component operates within a temperature range of -40°C to +130°C and exhibits an impedance of 3.9 mOhms.

Feature Summary

Utilizes Vitroperm nanocrystalline material for high magnetic performance
Engineered for effective common mode noise suppression
Supports high current handling capabilities up to 16 A

Applications

Power supply input filtering
Industrial equipment EMI reduction
Consumer electronics noise mitigation

Procurement Notes

Verify the specific suffix X039 against official Vacuumschmelze documentation to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with horizontal mounting requirements and thermal management strategies for the specified operating temperature range.

Selection Notes

Select this component when high saturation current and compact nanocrystalline performance are required. Compare inductance values at relevant frequencies against circuit requirements. Confirm that the 16 A current rating aligns with peak load conditions without exceeding thermal limits.

Part Context

This part belongs to the T60405 series of common mode chokes manufactured by Vacuumschmelze. The series utilizes Vitroperm alloy cores, offering superior permeability and low loss characteristics compared to traditional ferrite materials, suitable for demanding power applications.

Replacement Considerations

Consult official Vacuumschmelze substitution guides for verified equivalents. Generic replacements may not match the nanocrystalline core properties or current handling capacity.
