Product Detailed Parameters
- Description：CMC 810UH 40A 3LN 680 OHM TH
- Series：-
- Mfr：VACUUMSCHMELZE
- Package：Box
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：40A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 60°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.752" Dia (69.90mm)
- Height (Max)：1.469" (37.30mm)
- Package / Case：Horizontal, 6 PC Pin
- Inductance @ Frequency：810 µH @ 100 kHz
- Impedance @ Frequency：680 Ohms @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

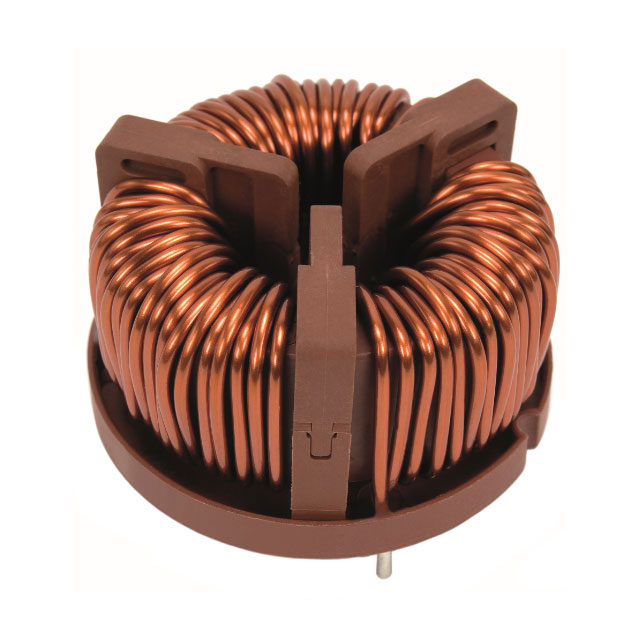

The VACUUMSCHMELZE T60405S6123X240 is a three-phase common mode choke utilizing Vitroperm nanocrystalline core technology. It features a horizontal mounting style and through-hole termination for PCB integration. Key electrical parameters include an inductance of 810 µH at 100 kHz, a common mode impedance of 680 Ω at 100 kHz, and a rated current capacity of 40 A. The component operates within a temperature range up to +130°C and is supplied in bulk packaging.
Feature Summary
- Utilizes Vitroperm nanocrystalline material for high magnetic performance
- Designed for three-phase power line filtering applications
- Horizontal form factor facilitates compact board layout
Applications
- Three-phase motor drive systems
- Industrial power supply input stages
- Electromagnetic interference suppression in AC/DC converters
Procurement Notes
Verify the specific suffix X240 against official Vacuumschmelze documentation to confirm exact electrical tolerances and pinout configuration. Ensure the procurement channel provides original manufacturer certification to guarantee material authenticity and compliance with specified nanocrystalline core standards.
Selection Notes
Select this component when designing three-phase circuits requiring robust common mode noise attenuation at 100 kHz. The 40 A current rating suits medium-power industrial loads. Confirm that the horizontal package dimensions fit the mechanical constraints of the target enclosure and PCB assembly process.
Part Context
This part belongs to the T60405 series of common mode chokes from Vacuumschmelze. The series leverages proprietary Vitroperm alloy cores to deliver superior saturation characteristics compared to traditional ferrite materials, making it suitable for high-current harmonic filtering in demanding power electronics environments.
Replacement Considerations
Cross-reference with T60405-S6123-X403 for similar four-phase or alternative current ratings. Verify that any substitute maintains the 810 µH inductance and 680 Ω impedance values at 100 kHz to ensure equivalent EMI suppression performance.
