Product Detailed Parameters
- Description：CMC 832UH 20A 4LN 860 OHM TH
- Series：-
- Mfr：VACUUMSCHMELZE
- Package：Box
- Filter Type：-
- Number of Lines：4
- Current Rating (Max)：20A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.008" Dia (51.00mm)
- Height (Max)：1.311" (33.30mm)
- Package / Case：Horizontal, 8 PC Pin
- Inductance @ Frequency：832 µH @ 100 kHz
- Impedance @ Frequency：860 Ohms @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

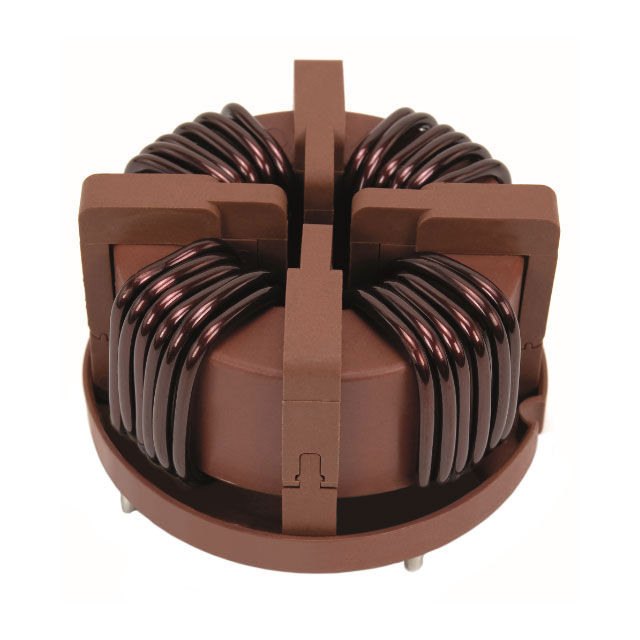

The T60405S6123X401 is a four-phase common mode choke manufactured by Vacuumschmelze. It utilizes Vitroperm nanocrystalline core technology to provide high-performance electromagnetic interference suppression in multi-phase power systems. The component features a horizontal mounting configuration with through-hole termination for secure PCB integration. Key electrical specifications include an inductance of 832 µH measured at 100 kHz and a DC resistance (DCR) of 20A. The device offers an impedance of 860 Ohms at 100 kHz, ensuring effective noise attenuation across the specified frequency range.
Feature Summary
- Four-phase design optimized for simultaneous filtering in multi-leg power circuits
- Nanocrystalline Vitroperm core material provides superior magnetic performance
- Horizontal form factor facilitates compact board layout integration
Applications
- Multi-phase motor drive systems
- Industrial power conversion units
- High-frequency switching power supplies
Procurement Notes
Verify the exact suffix X401 against manufacturer documentation to confirm specific winding configurations and tolerance levels. Ensure compatibility with existing PCB footprint dimensions and thermal management requirements before finalizing procurement orders.
Selection Notes
Select this component when four-channel common mode noise reduction is required in space-constrained applications. The nanocrystalline core offers higher saturation limits compared to traditional ferrite alternatives, making it suitable for demanding industrial environments.
Part Context
This part belongs to the T60405 series of common mode chokes from Vacuumschmelze. The series is characterized by the use of advanced nanocrystalline materials, offering enhanced efficiency and size reduction for modern power electronics designs requiring robust EMI filtering capabilities.
Replacement Considerations
Consult official substitution lists for equivalent four-phase nanocrystalline chokes. Verify that alternative parts match the 832 µH inductance and 860 Ohm impedance specifications to maintain circuit performance integrity.
