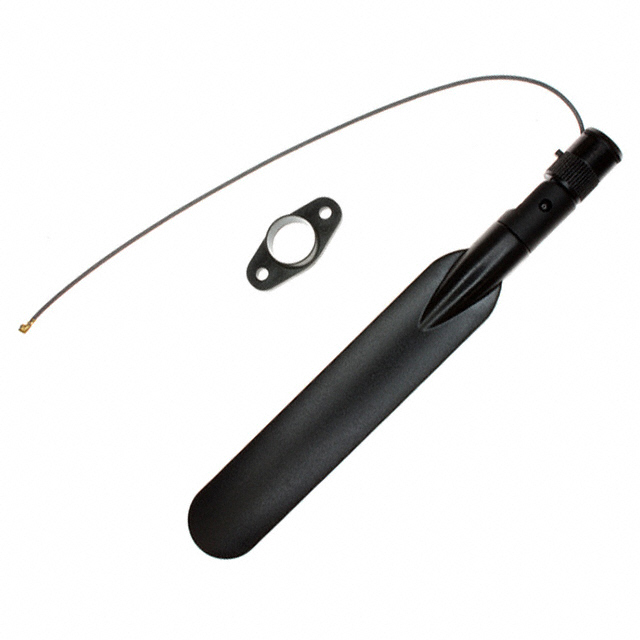

T614FC-7-PX-2.4/4.9/5.X-S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4/5.5GHZ WHIP TILT 7". Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T614FC-7-PX-2.4/4.9/5.X-S
- Description：RF ANT 2.4/5.5GHZ WHIP TILT 7"
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 5.5GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Whip, Tilt
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：4dBi, 5dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：6.083" (154.50mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for T614FC-7-PX-2.4/4.9/5.X-S
Antennas RF Overview
The T614FC-7-PX-2.4/4.9/5.X-S is a dual-band whip antenna manufactured by Nearson Inc., designed for wireless communication applications. It operates across the 2.4GHz to 2.5GHz and 5.15GHz to 5.85GHz frequency ranges. The component features a tilt mechanism and utilizes U.FL (UMCC) or I-PEX MHF1 connectors for interface compatibility. With a maximum height of 6.083 inches (154.50mm), it provides 4dBi gain on the 2.4GHz band and 5dBi gain on the 5.5GHz band, supporting short to medium-range data transmission.
Antennas RF Feature Summary
- Dual-band operation covering 2.4GHz and 5.5GHz frequencies
- Adjustable tilt mechanism for directional optimization
- Compatible with U.FL and I-PEX MHF1 connector types
Antennas RF Applications
- Short-range wireless communication systems
- Medium-range wireless networking devices
- IoT sensor nodes requiring dual-band connectivity
Antennas RF Procurement Notes
Verify that the specific connector variant matches your system requirements, as the model supports both U.FL and I-PEX MHF1 interfaces. Confirm RoHS compliance status through official documentation before integration. Ensure mechanical clearance allows for the full 6.083-inch height and tilt movement during installation.
Antennas RF Selection Notes
Select this antenna when dual-band performance at 2.4GHz and 5.5GHz is required in a compact form factor. The tilt feature offers flexibility for optimizing signal directionality in constrained spaces. Consider the connector type availability to ensure seamless integration with existing RF modules without additional adapters.
Antennas RF Part Context
This component belongs to the Nearson Inc. RF antenna product line, specifically categorized under passive components for RFID and wireless applications. It serves as a specialized solution for devices needing reliable dual-band transmission capabilities with physical adjustability for improved link quality.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the dual-band frequency range, tilt functionality, and connector interface specifications precisely.
