T6165AH-LTE-S

Antennas RF Overview

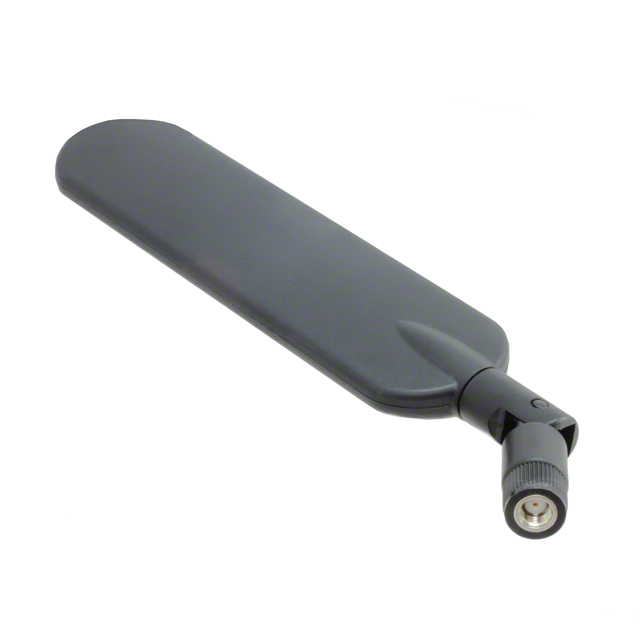

The Nearson T6165AH-LTE-S is a multi-band LTE whip antenna designed for wideband wireless communication applications. It operates across five distinct frequency bands: 700 MHz, 850 MHz, 900 MHz, 1.8 GHz, and 1.9 GHz. The component features a tilt design to optimize signal radiation patterns and utilizes an SMA female connector for secure mounting. This configuration supports robust connectivity in environments requiring coverage across multiple cellular LTE spectrum allocations.

Antennas RF Feature Summary

• Multi-band support covering 700 MHz through 1.9 GHz
• Tilt whip design for optimized radiation pattern
• SMA female connector mount interface

Antennas RF Applications

• LTE wireless communication systems
• Industrial IoT gateways
• Wideband data transmission units

Antennas RF Procurement Notes

Verify the specific datasheet version with Nearson Inc. or authorized distributors to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with SMA female interfaces on target equipment. Cross-reference part numbers carefully as suffixes may indicate minor variations in connector type or mounting style that affect integration.

Antennas RF Selection Notes

Select this antenna when coverage across 700, 850, 900, 1.8, and 1.9 GHz bands is required within a single compact unit. The tilt feature makes it suitable for scenarios where directional optimization is needed without complex adjustment mechanisms. Confirm that the SMA female interface matches the host device's RF port specifications before procurement.

Antennas RF Part Context

This model belongs to Nearson’s line of RF antennas, specifically engineered for LTE applications. It represents a solution for integrating multiple frequency bands into a single physical component, reducing the need for separate antennas for different cellular bands. The product is categorized under RF/IF and RFID components, focusing on wireless connectivity infrastructure.

Antennas RF Replacement Considerations

The T6165AM-LTE-S is listed as a related variant by some suppliers, though specific technical differences are not explicitly detailed in public summaries. Verify pinout, connector gender, and frequency response curves against the original datasheet before substitution to ensure functional equivalence.
